The AXAGON PCEA-P1N PCI-Express card adds one parallel port with a DB25 connector to your desktop PC.
This allows you to connect parallel devices to your computer such as printers, plotters, hardware keys or EPROM programmers etc.
Seamless compatibility and wide port options are ensured by using the proven ASIX chipset.

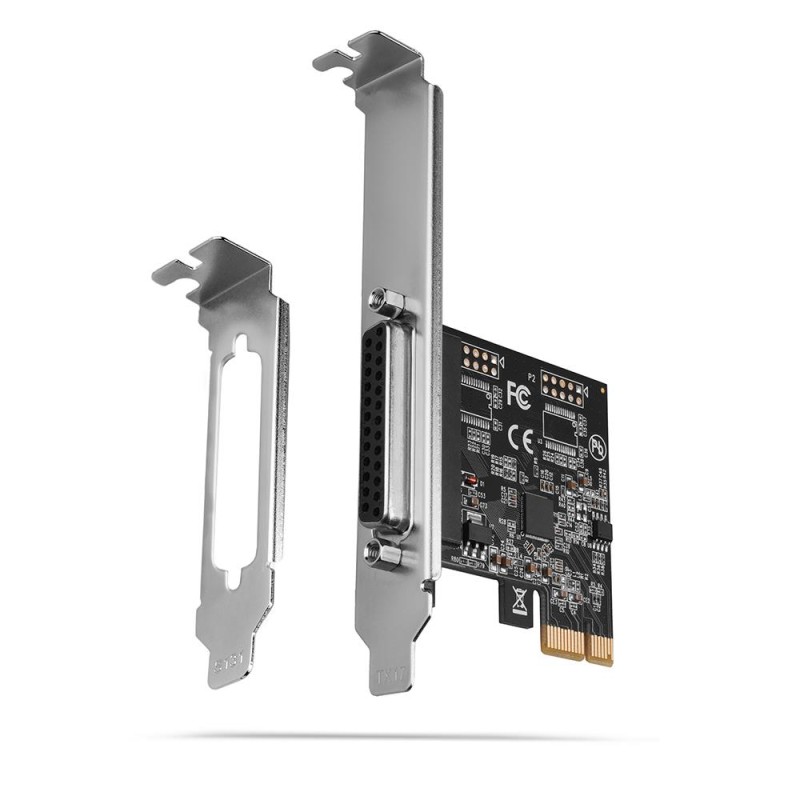

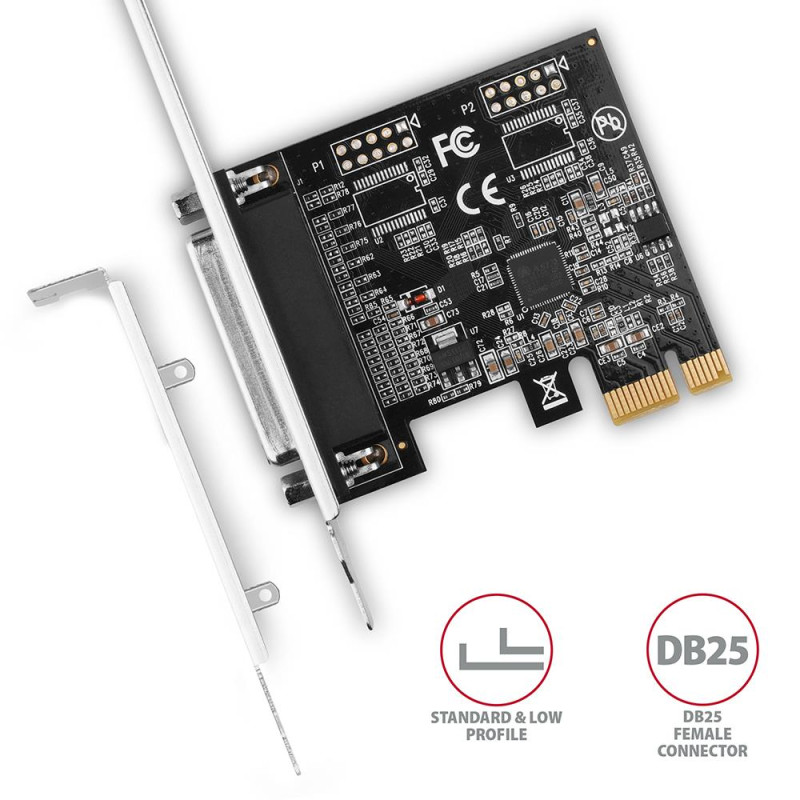

Thanks to included low profile bracket, the adapter can be mounted into standard and also into low profile case.
Input:
• PCI-Express 2.0 interface compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
• Number of 1-Lane (x1) lines compatible with x1 / x4 / x8 / x16 PCIe slots.
• The bandwidth of 1-Lane PCI-Express 2.0 bus is 5 Gb/s.
Output:

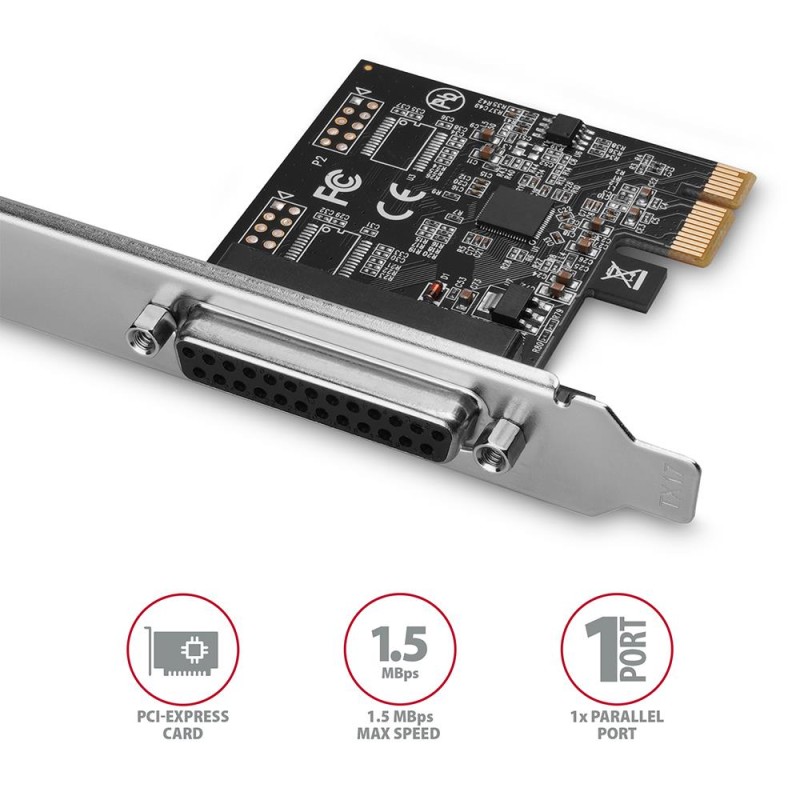

• 1x parallel IEEE 1284 port with a DB25 female connector.
• SPP/BYTE/ECP compatible.
Other features:
• Plug and Play Support - automatic selection of IRQ and I/O address.
• PCI Power Management 1.2 compatible.
• Supports ASPM Power Management.
• Transmission rate up to 1.5 MB/s.

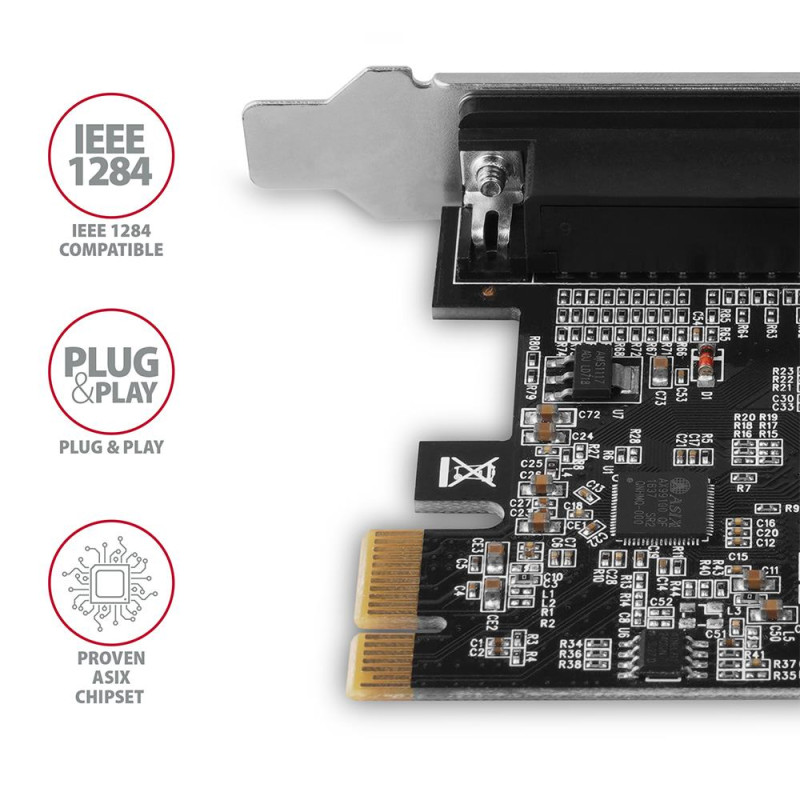

• ASIX AX99100 chipset is used.
Supported operating systems:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 and later (supported are all 32 and 64-bit Windows OS versions), Linux with kernel 2.6.11 and above.

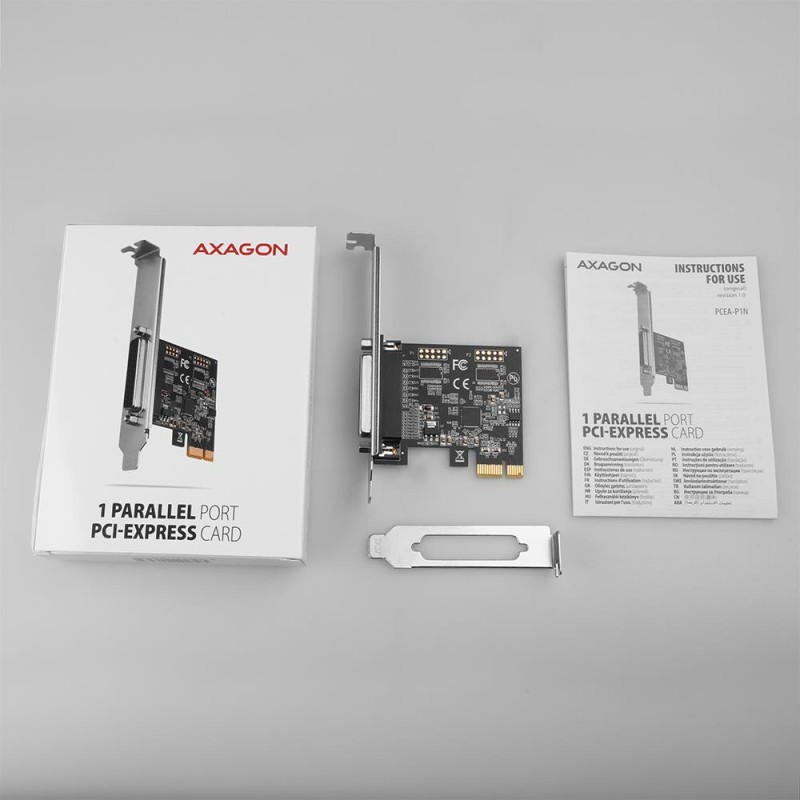

Package contains:
• PCI-Express card with a standard bracket,
• low profile bracket,
• printed installation manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
• packed in a cardboard box.
