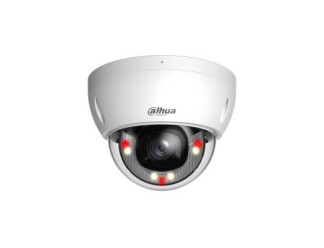

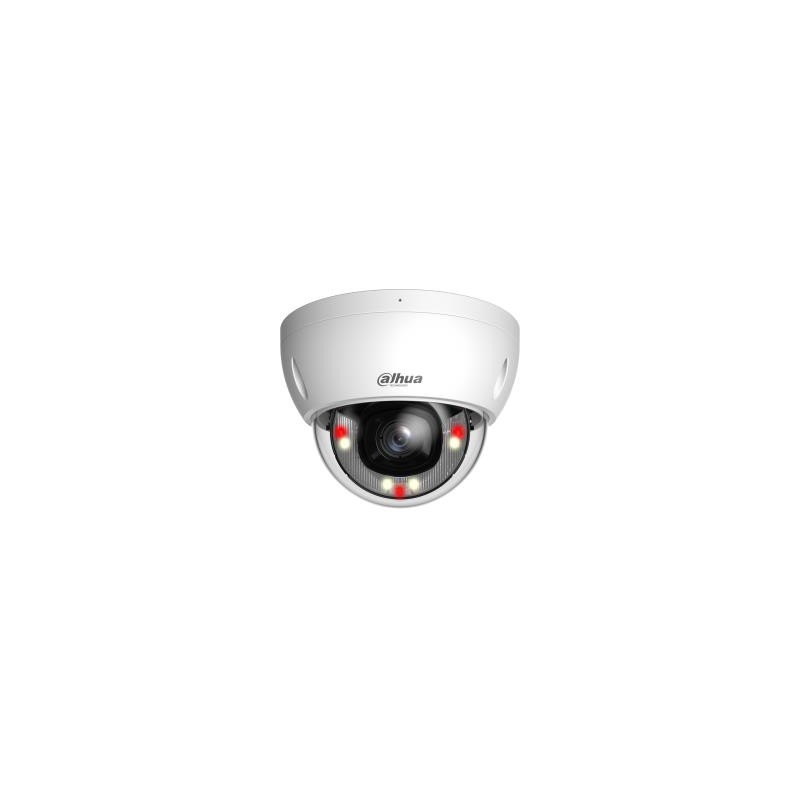

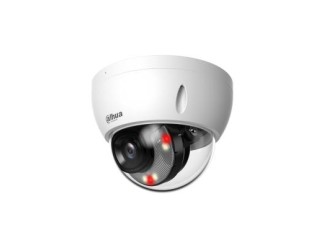

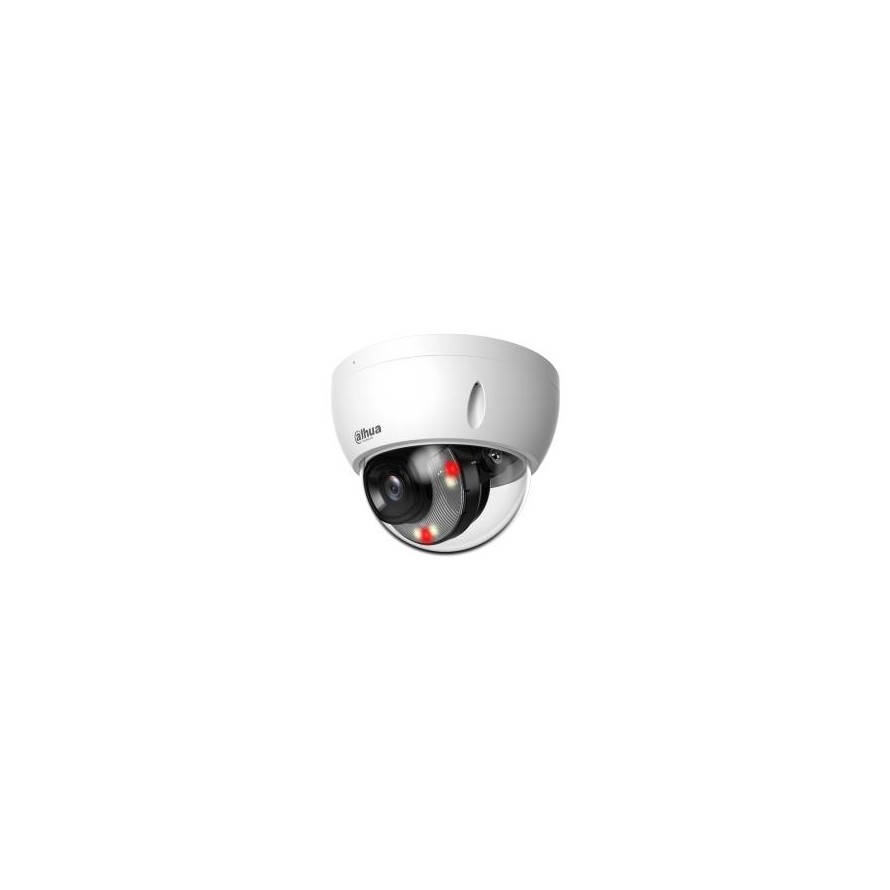

6MP Smart Dual Light Fixed-focal Dome WizSense Network Camera
>1/2.7" CMOS image sensor, low luminance, and high definition image.
>Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67, IK10 protection.
>SMD Plus
> Focal Length 2.8 mm; Field of View 112°

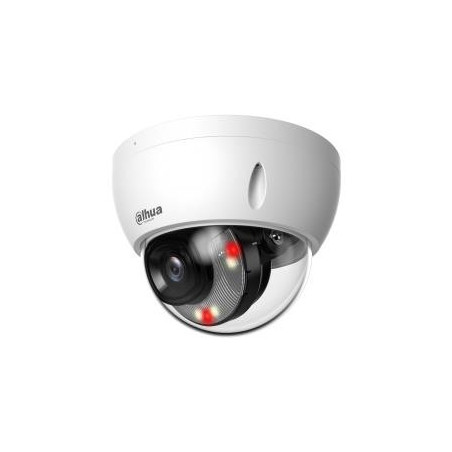

NET CAMERA 6MP IR DOME/IPC-HDBW2649E-S-IL-0280B DAHUA
NET CAMERA 6MP IR DOME/IPC-HDBW2649E-S-IL-0280B DAHUA
186,87 €
Pagrindinės savybės:
| Produkto informacija | FRT1093790 |
| Liko produktų | 20+ |
- Garantija (mėn.) 36
- Prekių pristatymas Apie 4d.d.
- Likutis 20+
Apie produktą
Produkto ypatybės
Garantija
36
Vendor Homepage
www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDBW2649E-S-IL
Category Code
FNC
Unit Box Height
0.115
Unit Box Length
0.14
Unit Box Width
0.14
Product colour
White
Operating temperature (T-T)
–40 °C to +60 °C °C
Unit Calculated Volume
0 cubm
0.002254 cubm
0.002769 cubm
0.002254 cubm
0.002769 cubm
Product Net Weight
0 kg
0.34 kg
0.34 kg
Unit Calculated Weight
0.5 kg
0.545 kg
1 kg
0.545 kg
1 kg
CnCode
85258900
Height
81 mm
Colour
White
RJ45
1
Operating temperature range
–40 °C to +60 °C
Model
IPC-HDBW2649E-S-IL-0280B
IPC-HDBW2649E-S-IL-0280B-B
IPC-HDBW2649E-S-IL-0280B-B
Ethernet LAN (RJ-45) ports
1
Power consumption (typical)
6.8 W
Units per Shipping Box
1
20
20
Form Factor
Dome
Dimensions
81.0 mm × Φ109.9 mm
Weight
340 g
International Protection (IP) code
IP67
Connectivity technology
Wired
Power source type
DC,PoE
Type
IP security camera
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
256 GB
Camera design
Dome
Sensor size
1/2.7" CMOS
Pixel Resolution
6 Mega Pixel
Focal Length
2.8 mm; 3.6 mm
IR Illumination
Yes
Microphone
Built-in
Supports card capacities up to
256GB
Power options
PoE
Power supply requirements
12 VDC; PoE
Environment
Outdoor
Power consumption
6.8 Watts
7 Watts
7 Watts
Sensor type
CMOS
Fixed focal length
2.8 mm
LED type
IR
Built-in microphone
Yes
Maximum resolution
3288×1850 pixels
Diameter
109.9 mm
Camera shutter speed
1/3 s–1/100,000 s s
Optical sensor size
1/2.7" "
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Network Camera Type
Fixed/HDTV/Megapixel
Min. Illumination
0 Lux
0.0007 Lux
0.0007 Lux
Effective pixels
3288 (H) × 1850 (V)
Minimum illumination
0.0007 lx
DC output voltage
12
Adjustment shutter speed
Auto/Manual
Total megapixels
6 MP
Lens mount interface
M12
B/W night vision distance
30 m
3D NR (Noise Reduction)
Yes
Night vision
Yes
Lens Mount
M12
Field of view (FOV) angle
112 °
Number of sensors
1
Back Light Compensation (BLC)
Yes
Highlight Compensation (HLC)
Yes
Wide Dynamic Range (WDR)
Yes
IK code
IK10
