NET CAMERA 4MP HYBRID BULLET/TPC-BF2241-TB7F8-DW-S2 DAHUA

NET CAMERA 4MP HYBRID BULLET/TPC-BF2241-TB7F8-DW-S2 DAHUA

1 852,39 €
Pagrindinės savybės:
Produkto informacija FRT1094975
Liko produktų 1

  • Garantija (mėn.) 36
  • Prekių pristatymas Apie 4d.d.
  • Likutis 1

Apie produktą

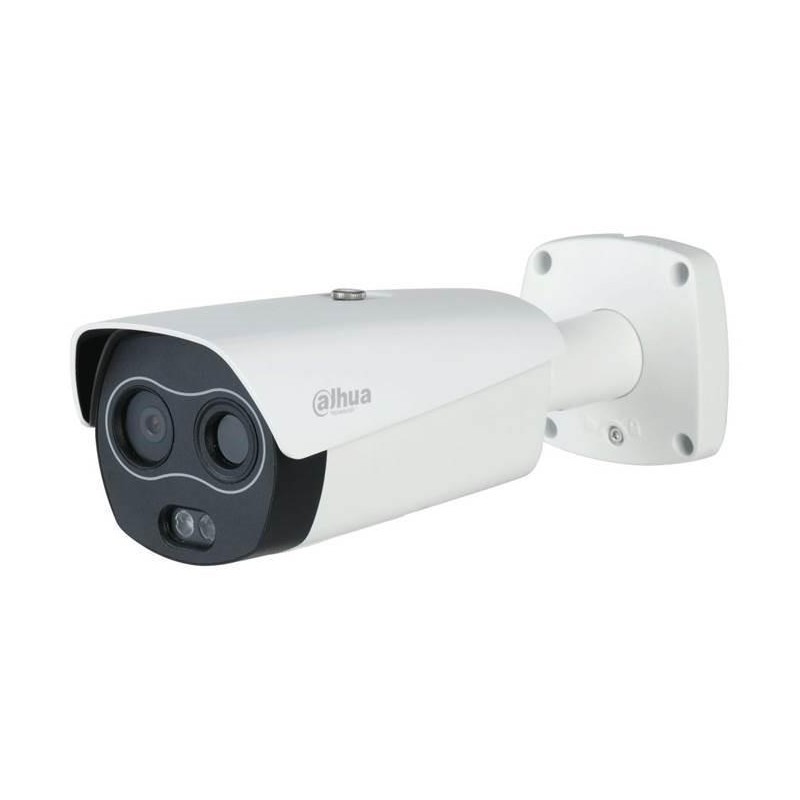

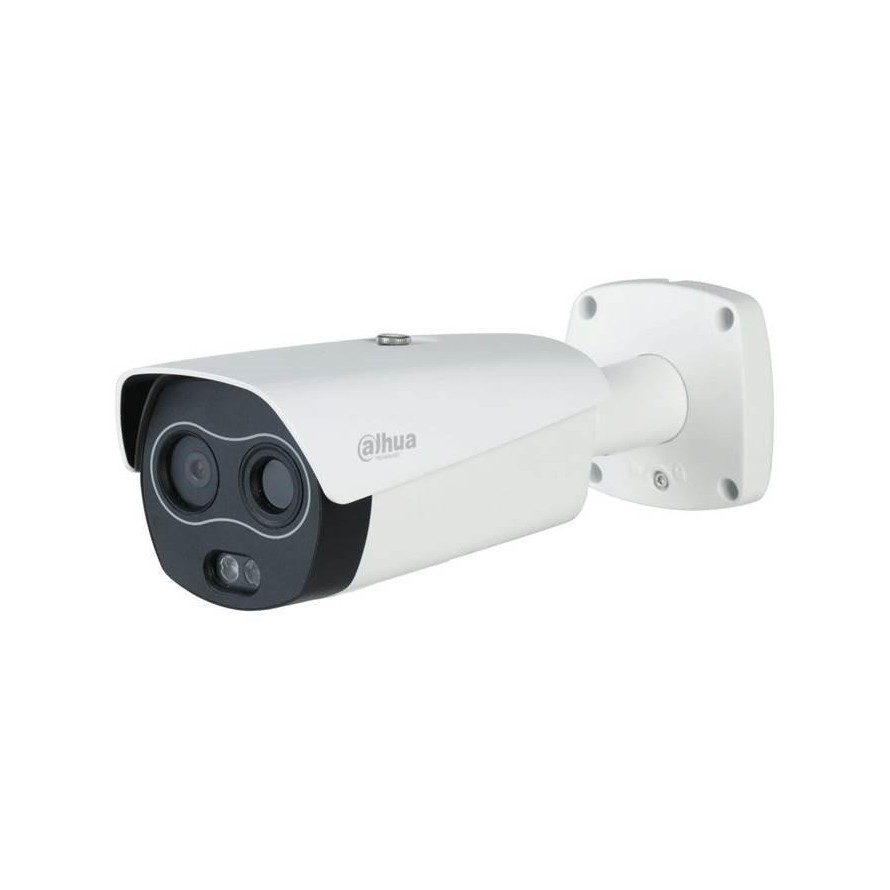

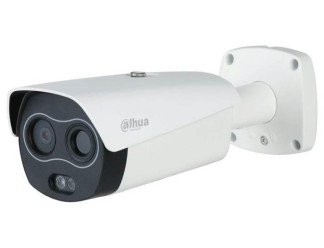

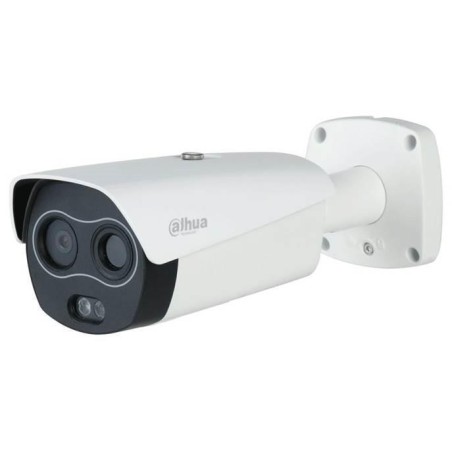

Thermal Network Hybrid Bullet Camera

> Vanadium oxide uncooled focal plane detector.

> 4Megapixel progressive scan CMOS.

> Offers various AI functions such as intrusion, target filtering, heat detection, smoking detection, and calling detection.

> Built-in white light and speaker that produce light and sound alarms to deter intruders.

> Built-in IR LED with a maximum illumination distance of 35 m.

> Dual image fusion (visible and thermal images).

> 12 VDC ± 20%/PoE power supply.

> IP67 rated.

> Thermal Focal Length 7 mm, Field of View 24°

> Visual Focal Length 8 mm, Field of View 33.4°





Produkto ypatybės

Garantija
36
Vendor Homepage
www.dahuasecurity.com/products/All-Products/Thermal-Cameras/Thermography-Series/Thermography/TPC-BF2241-T
Category Code
FNC
Unit Box Height
0.18
Unit Box Length
0.365
Unit Box Width
0.18
Product colour
White
Operating temperature (T-T)
–30 °C to +60 °C °C
Unit Calculated Volume
0 cubm
0.01183 cubm
Product Net Weight
1 kg
1.4 kg
Unit Calculated Weight
1.93 kg
2 kg
CnCode
85258900
Width
279.9 mm
Height
95.8 mm
Depth
103.8 mm
Audio-In
1
Audio-Out
1
RJ45
1
Operating temperature range
–30 °C to +60 °C (–22 °F to +140 °F)
Model
TPC-BF2241-TB7F8-DW-S2
Ethernet LAN (RJ-45) ports
1
Units per Shipping Box
1
Form Factor
Bullet
Dimensions
279.9 mm × 103.8 mm × 95.8 mm
Weight
1400 g
Suitable for outdoor use
Yes
Power source
12 VDC, 1 A ± 20%, PoE (802.3af)
Compatible memory cards
MicroSDXC
Maximum memory card size
256 GB
Camera design
Bullet
Sensor size
1/2.7" CMOS
Pixel Resolution
4 Mega Pixel
Focal Length
Thermal - 7mm, visual - 8mm
IR Illumination
Yes
Supports card capacities up to
256GB
Power options
12V/PoE
Power supply requirements
12 VDC, 1 A ± 20%, PoE (802.3af)
Environment
Outdoor
MicroSD Card Slot
1
Power consumption
5 Watts
Sensor type
CMOS
Audio input
1
Audio output
1
Camera shutter speed
1 s–1/30,000 s s
Optical sensor size
1/2.7" "
Electronic Shutter Speed
1 s–1/30,000 s
Network Camera Type
Outdoor/Thermal
Min. Illumination
0 Lux
0.005 Lux
Effective pixels
256 (H) × 192 (V)
Alarm Out
1
Alarm In
1
Number of effective pixels (H x V)
256 (H) × 192 (V) pixels
Focal length range
Thermal - 7mm, visual - 8mm mm
Total megapixels
4 MP
RS-485 ports
1
Alarm input channels
1
Alarm output channels
1
RS-485
1
Thermal module
Yes
