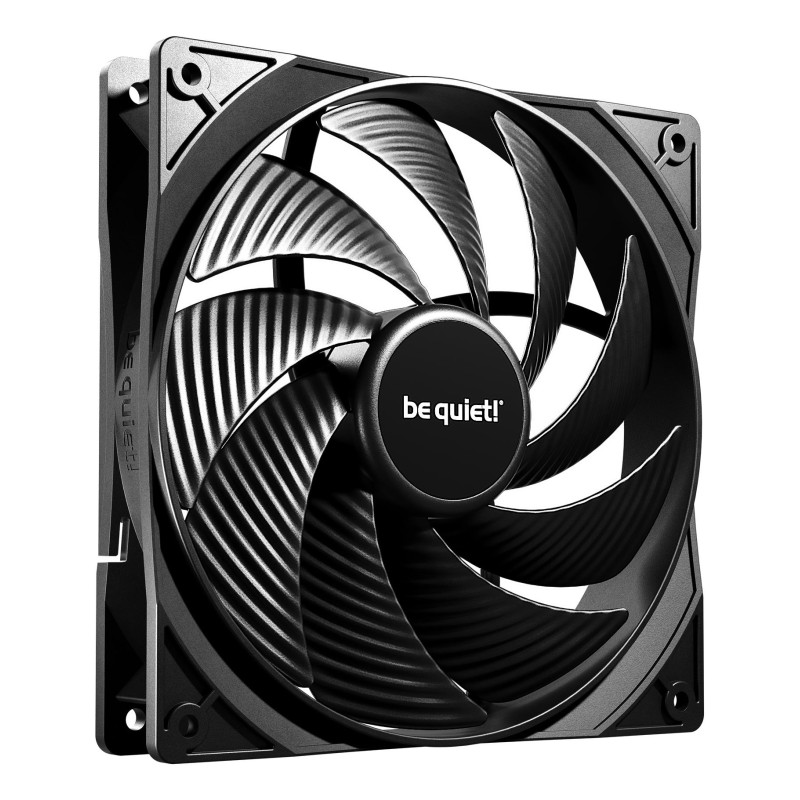

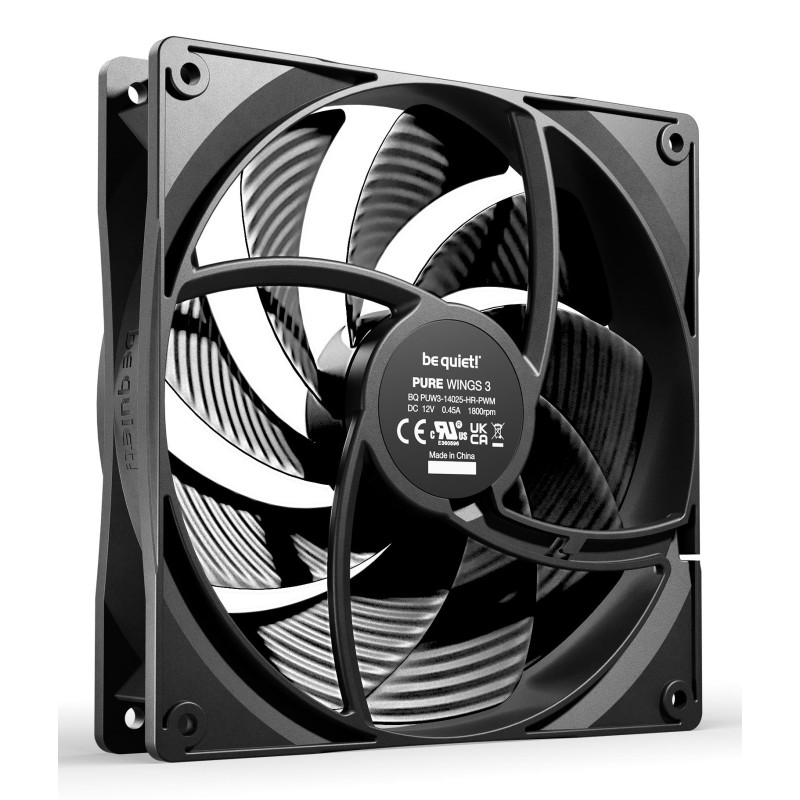

CASE FAN 140MM PURE WINGS 3/PWM HS 3PACK BL138 BE QUIET

CASE FAN 140MM PURE WINGS 3/PWM HS 3PACK BL138 BE QUIET

38,43 €
Pagrindinės savybės:
Produkto informacija FRT1105015
Liko produktų 20+

Sblizingas.lt - naujasdizainas.com
  • Garantija (mėn.) 36
  • Prekių pristatymas Apie 4d.d.
  • Likutis 20+

Apie produktą

PURE WINGS 3
140mm PWM HS 3-Pack

PERFORMANT, PROGRESSIVE, QUIET
Pure Wings 3 140mm PWM high-speed Triple Pack is the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor.

INNOVATIVE TECHNOLOGY
Closed loop motor for persistent rpm
Pure Wings 3 140mm PWM high-speed Triple Pack features a closed loop motor. This technology is comparable with the cruise control in cars. When working against resistance, for example a fan grill or radiator, fans spin slower as a result. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm, if necessary. As a result, Pure Wings 3 140mm PWM high-speed Triple Pack always operates at the desired speed, no matter the resistance.

OPTIMIZED TO THE MAX
For unprecedented air pressure in its class
The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 140mm PWM high-speed Triple Pack. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 140mm PWM high-speed Triple Pack.

FOR RADIATORS AND HEATSINKS
Fan blades optimized for high pressure
With a remarkably high air pressure of up to 2.44mm/H2O, Pure Wings 3 140mm PWM high-speed Triple Pack is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan work great even in demanding configurations.

ICONIC DESIGN
Streamlined look makes it an instant timeless classic
Pure Wings 3 140mm PWM high-speed Triple Pack trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 140mm PWM high-speed Triple Pack a timeless classic and elegant addition to every gaming PC.

RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 a long-lasting companion
Pure Wings 3 140mm PWM high-speed Triple Pack is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.

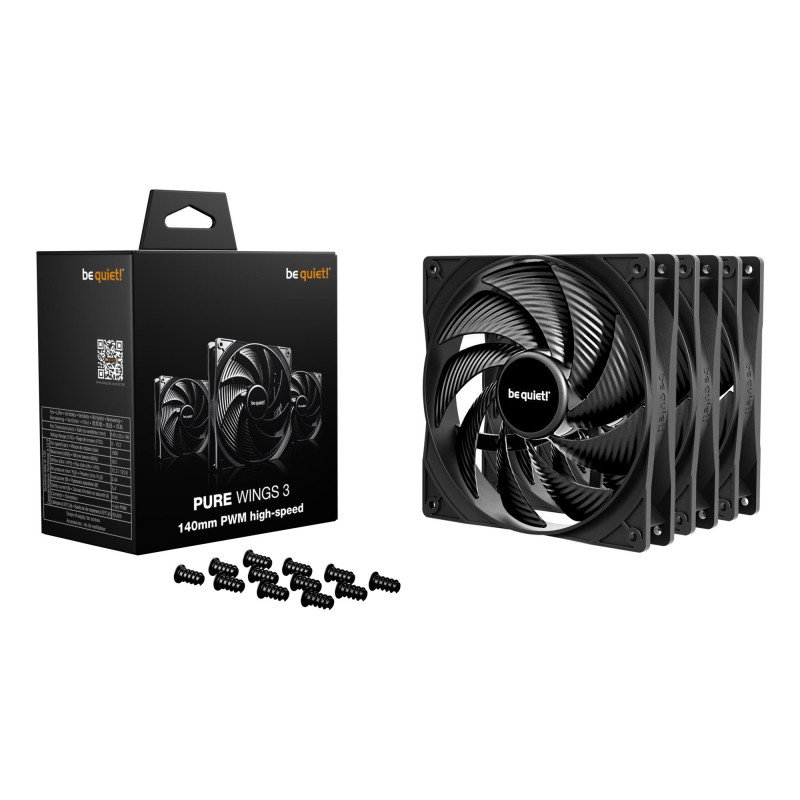

  • 3 fans included
  • Innovative closed loop motor keeps the rpm no matter the resistance
  • Optimized fan frame for outstanding performance on radiators
  • Newly designed fan blades and re-arranged angle for extraordinary air pressure
  • Pure Wings 3 can be operated with very low minimum rpm for very quiet operation
  • Product conception, design and quality control in Germany

Produkto ypatybės

Garantija
36
Vendor Homepage
https://www.bequiet.com/en/casefans/6699
Category Code
COS
Unit Box Height
0.08
Unit Box Length
0.142
Unit Box Width
0.153
Product colour
Black
Shipping Box Depth
42.3 cm
42.2999992370605 cm
Shipping Box Height
34.7 cm
34.7000007629395 cm
Shipping Box Weight
13.5 kg
Shipping Box Width
31 cm
Model name
Pure Wings 3
Unit Calculated Volume
0.002275 cubm
Product Net Weight
0.5 kg
Unit Calculated Weight
0.675 kg
CnCode
84145925
Summary
be quiet! Pure Wings 3 140mm | PWM high-speed Triple Pack. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1800 RPM, Airflow: 122.6 m³/h, Maximum air pressure: 2.44 mmH2O, Bearing type: Rifle bearing. Voltage: 5 - 13.2 V. Product colour: Black
Model
BL138
Unit Brutto Volume
0.002275 cubm
Package depth
152 mm
Package height
142 mm
Package weight
610 g
Package width
80 mm
Units per Shipping Box
20
Warranty period
3 year(s)
Quantity per pack
3 pc(s)
Package type
Hanging box
Compliance certificates
CE/RoHS/UKCA/WEEE
Certification
RU
Products per shipping (inner) case
20 pc(s)
Shipping (inner) case height
304 mm
Shipping (inner) case length
423 mm
Shipping (inner) case width
344 mm
Type
Fan
Maximum airflow
72.2 cfm
Sustainability certificates
Triman
Cable length
0.46 m
Kabelio ilgis
0.46 m
Pakuotės tipas
Pakabinama dėžutė
Tipas
Ventiliatorius
Voltage
5 - 13.2 V
Pakuotės gylis
152 mm
Pakuotės aukštis
142 mm
Pakuotės plotis
80 mm
Paketo svoris
610 g
Bearing type
Rifle bearing
Fan diameter
140 mm
Rotational speed (max)
1800 RPM
Suitable location
Computer case
Fan connector
4-pin
Fan current
0.5 A

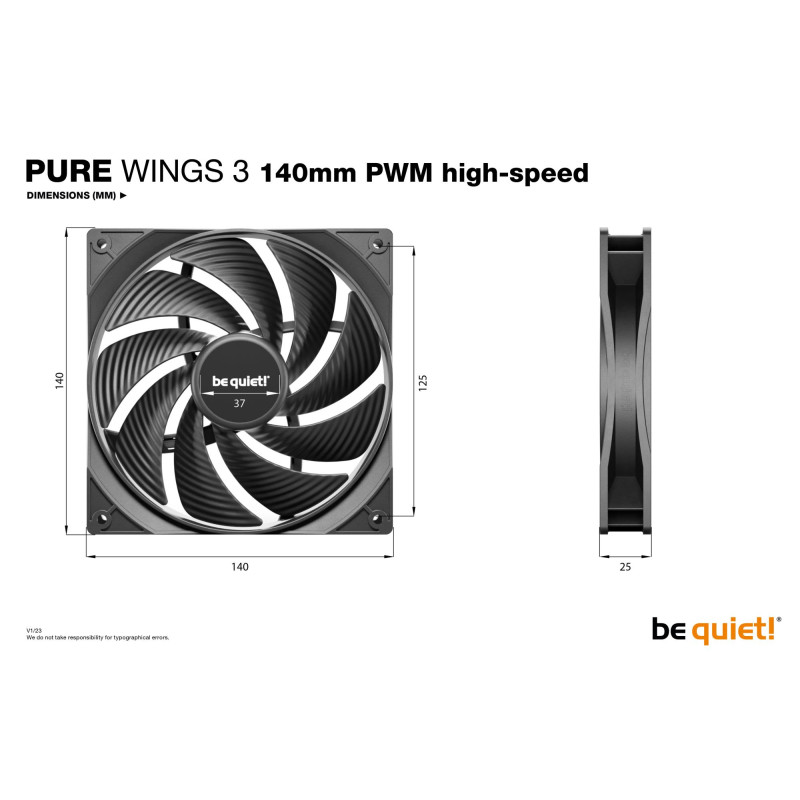

Fan dimensions (W x D x H)
140 x 140 x 25 mm
Fan weight
188 g
Screws included
Yes
Number of fans
1 fan(s)
Rated voltage
12 V
Airflow
122.6 m³/h
Kiekis pakuotėje
3 vnt
Produkto spalva
Juoda
Sertifikavimas
RU
Garantinis laikotarpis
3 metai
Atitikties sertifikatai
CE/RoHS/UKCA/WEEE
Tvarumo sertifikatai
Triman
Pridėti sraigtai
Taip
Ventiliatoriaus skersmuo
140 mm
Sukimosi greitis (maks.)
1800 RPM
Triukšmo lygis (didelis greitis)
30.5 dB
Įtampa
5 - 13.2 V
Oro srautas
122.6 m³/h
Ventiliatorių skaičius
1 ventiliatorius(iai / ių)
Ventiliatoriaus jungtis
Keturių kontaktų
Ventiliatoriaus laikiklio tipas
Graižtinis guolis
Didžiausias oro slėgis
2.44 mmH2O
Impulsų pločio moduliacijos (PWM) palaikymas
Taip
Nominalioji įtampa
12 V
Tinkama vieta
Kompiuterio korpusui
Ventiliatoriaus matmenys (plotis x gylis x aukštis)
140 x 140 x 25 mm
Ventiliatoriaus vidutinis laikas iki gedimo (MTTF)
80000 h
Didžiausias oro srautas
72.2 cfm
Ventiliatoriaus srovė
0.5 A
Ventiliatoriaus energijos suvartojimas
6 W
Neto svoris
0.5 kg
Shipping (inner) case gross weight
12910 g
Maximum air pressure
2.44 mmH2O
Noise level (high speed)
30.5 dB
Pulse-width modulation (PWM) support
Yes
Fan power consumption
6 W
Ventiliatoriaus svoris
188 g
Transportavimo kartono dėžės aukštis
304 mm
Transportavimo kartono dėžės ilgis
423 mm
Transportavimo kartono dėžės plotis
344 mm
Gaminių skaičius gabenimo (vidinėje) dėžėje
20 vnt
Gabenimo (vidinės) dėžės bendrasis svoris
12910 g
Daugiafunkcinio įrankio tipas
36
Unit Width
15.3 cm
Unit Depth
14.2 cm
Unit Height
8 cm
Name
CASE FAN 140MM PURE WINGS 3/PWM HS 3PACK BL138 BE QUIET
Vieneto aukštis
8 cm
Vieneto gylis
14.2 cm
Vieneto plotis
15.3 cm
Vienetų skaičius vienoje siuntimo dėžėje
20
Bruto svoris
0.675 kg
Fan's mean time to failure (MTTF)
80000 h
