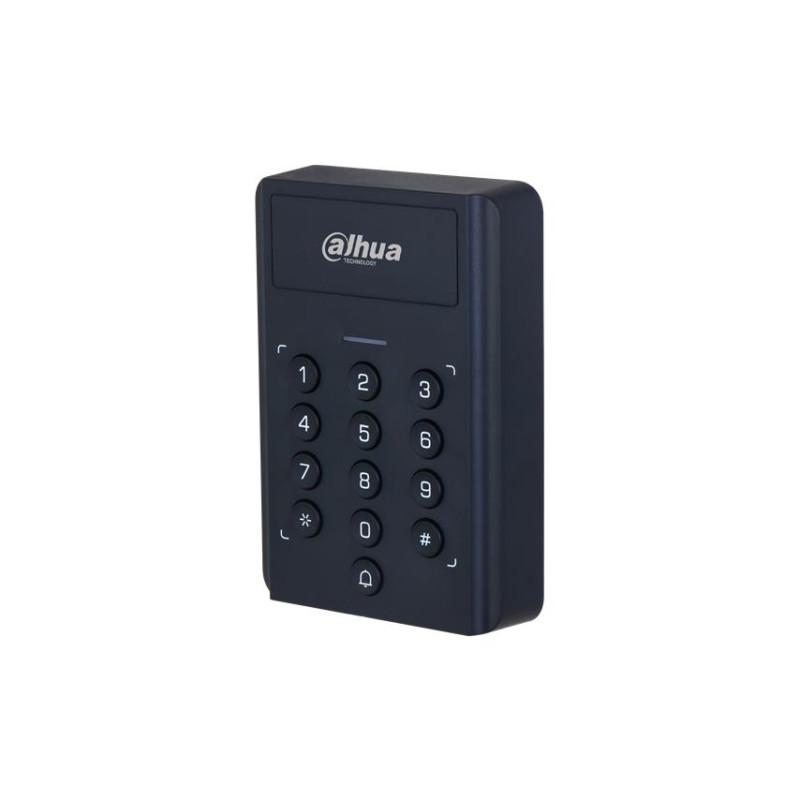

CODE LOCK SMART/ASI1201BL-D DAHUA

CODE LOCK SMART/ASI1201BL-D DAHUA

55,18 €
Pagrindinės savybės:
Produkto informacija FRT1105278
Liko produktų 1

  • Garantija (mėn.) 36
  • Prekių pristatymas Apie 4d.d.
  • Likutis 1

Apie produktą

> Made from ABS material.

> Supports 3000 passwords and 3000 cards.

> Multiple unlock methods including card and password. You can also combine them to create your own personal unlock methods.

> Mechanical keyboard.

> Contactless card reading for ID cards.

> Buzzer and indicator light.

> Supports doorbells.

> Unlock timeout alarm.

> Supplies power to 1 lock (12 V, 1 A or lower) .

> Suitable for use indoors.

> Supports surface mount and 86 mm Junction Box Mount.

Produkto ypatybės

Garantija
36
Vendor Homepage
https://www.dahuasecurity.com/es/products/All-Products/Access-Control/Access-Control/Standalone/Lite/ASI1201BL-D
www.dahuasecurity.com/products/All-Products/Access-Control--Time-Attendance/Access-Control/Standalone/Lite/ASI1201BL-D
Category Code
DCL
Unit Box Height
0.055
Unit Box Length
0.161
Unit Box Width
0.101
Product colour
Black
Operating temperature (T-T)
-30 - 60 °C
Shipping Box Depth
16.1000003815 cm
Shipping Box Height
5.5 cm
Shipping Box Weight
0.2300000042 kg
Shipping Box Width
10.1000003815 cm
Model name
ASI1201BL-D
Unit Calculated Volume
0.0008944 cubm
Product Net Weight
0.2 kg
0.9 kg
Unit Calculated Weight
0.23 kg
CnCode
85176920
Width
90 mm
Height
130 mm
Depth
26 mm
Summary
Dahua Technology ASI1201BL-D. Input voltage: 12 V, Input current: 1 A, Power consumption (typical): 12 W. Width: 90 mm, Depth: 26 mm, Height: 130 mm. Package width: 161 mm, Package depth: 101 mm, Package height: 55 mm
Power consumption (typical)
12 W
Package depth
101 mm
Package height
55 mm
Package weight
1000 g
Package width
161 mm
Operating relative humidity (H-H)
0 - 90 %
Units per Shipping Box
1
Dimensions
130 × 90 × 26 mm
Housing material
Acrylonitrile butadiene styrene (ABS)
Compliance certificates
CE
Fingerprint reader
No
Recommended usage
Indoor
Built-in display
No
Type
Entrance control terminal
Input voltage
12 V
Input current
1 A
Keypad integrated
Yes
Front camera
No
Waterproof
No
Alarm function
Yes
DC current (max)
2 A
Authentication type
Access chip/card/Password
Built-in processor
Yes
Daugiafunkcinio įrankio tipas
36
Number of users
3000 user(s)
Buzzer
Yes
Unit Width
10.1 cm
Unit Depth
16.1 cm
Unit Height
5.5 cm
Name
CODE LOCK SMART/ASI1201BL-D DAHUA
Built-in relay
Yes
Access chip/card reader
Yes
Access chip/card reader type
Contactless
Access code reader
Yes
Cards capacity
3000 cards
Contactless working distance
35 mm
Door contact input
1
Exit button
Yes
Lock control
Yes
Password capacity
3500
RFID reading distance
35 mm
Stand-alone usage
Yes
Unlock function
Yes
User capacity
3000 user(s)
