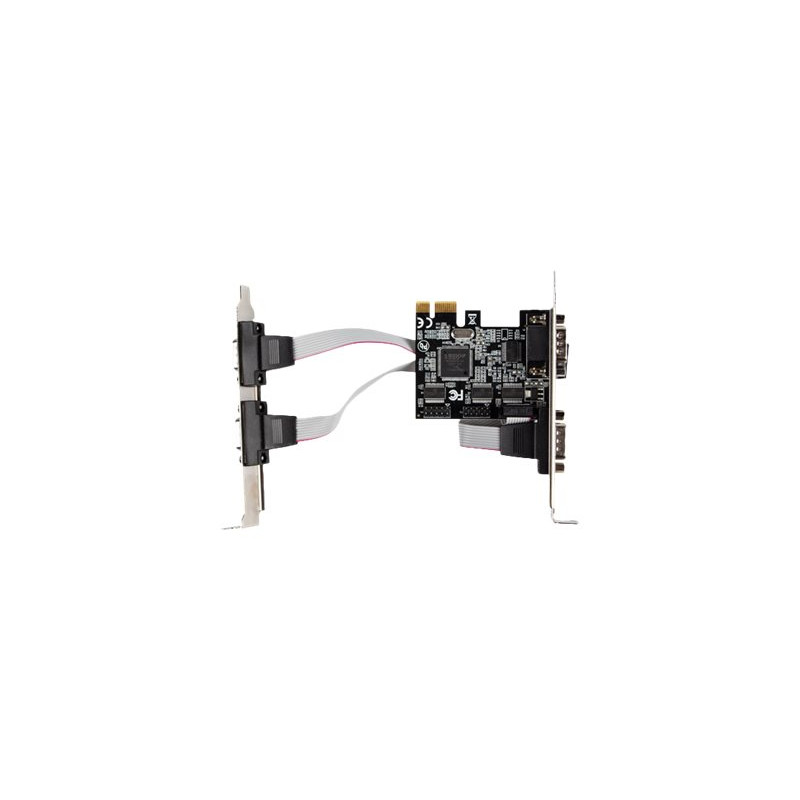

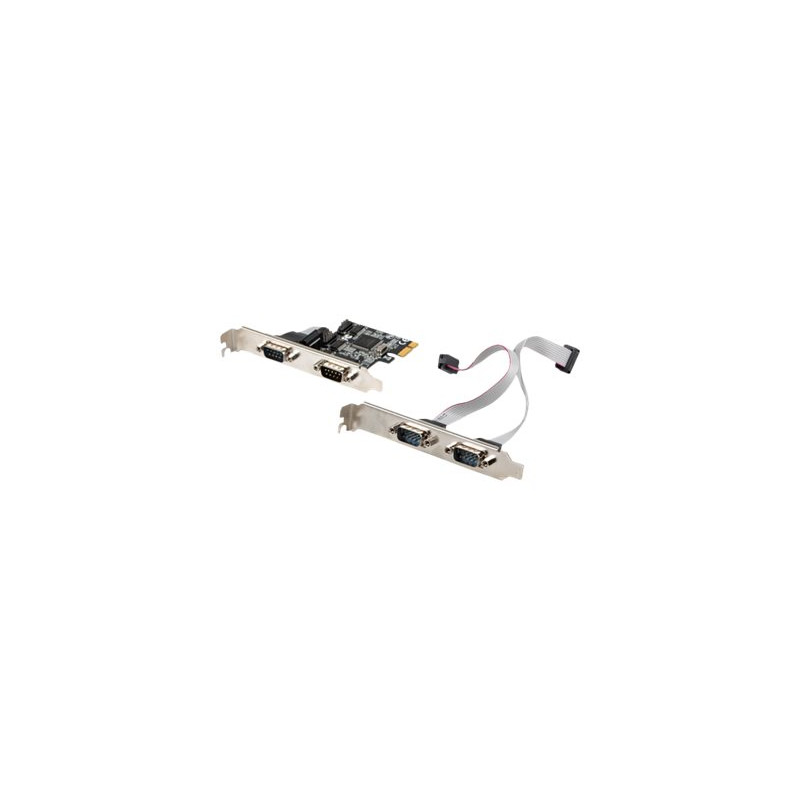

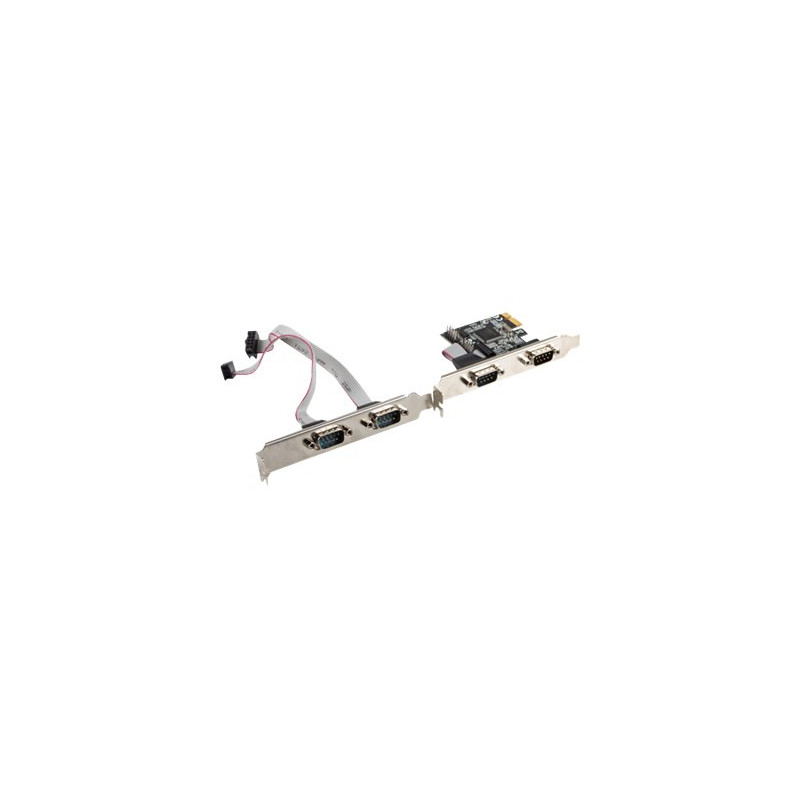

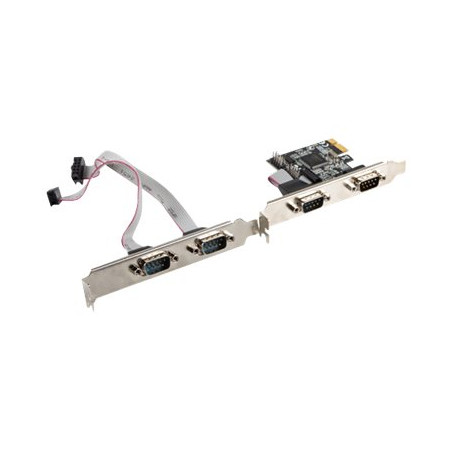

The Lanberg PCE-DB9-004 is designed for versatile connectivity with its 4 female 9-pin D-Sub (DB-9) ports that support RS-232, RS-422, and RS-485 protocols. This plug-in card utilizes a PCI Express x1 interface for installation and is suited for environments with an operating temperature range of 0°C to 50°C and humidity levels from 10% to 90% (non-condensing). This serial adapter facilitates reliable wired connections and features remote Wake Up functionality, ensuring a hassle-free user experience.With a focus on durability and performance, the PCE-DB9-004 is equipped with a bidirectional data link and a 256-byte FIFO for efficient data transmission. Ideal for various applications, it serves well in situations when a low-profile design is essential. The compact form factor and robust connectivity make this device a choice for enhancing system capabilities.
- Interface: PCI express 1x
- Supports RS232, RS485 & RS422 modes
- Bi-directional speeds from 50 bps to 16 Mbps/Port
- Full serial modem control
- 5, 6, 7, 8 and 9-bit serial format support
- Even, odd, none, space & mark parity supported
- Custom BAUD Rates supported with external clock or by programming internal PLL
- On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
- Supports remote wake up and power management features
- Serial port transceiver shutdown support
- Supports Slow IrDA on all Serial Ports IEEE1284
