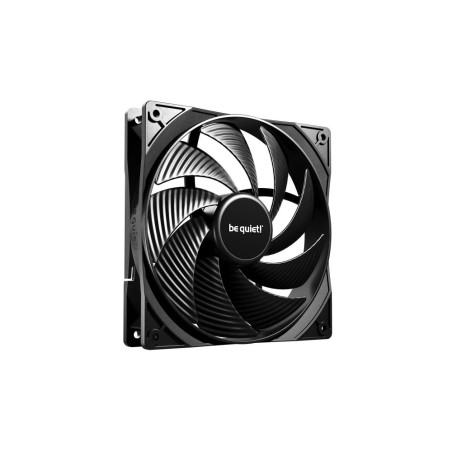

CASE FAN 140MM PURE WINGS 3/PWM HIGH-SPEED BL109 BE QUIET

CASE FAN 140MM PURE WINGS 3/PWM HIGH-SPEED BL109 BE QUIET

17,56 €
Pagrindinės savybės:
Produkto informacija FRT930802
Liko produktų 20+

Sblizingas.lt - naujasdizainas.com
  • Garantija (mėn.) 36
  • Prekių pristatymas Apie 4d.d.
  • Likutis 20+

Apie produktą

Performant, Progressive, Quiet
Pure Wings 3 140mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. This makes the fan a versatile companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.

  • Innovative closed loop motor keeps the rpm no matter the resistance
  • Optimized fan frame for outstanding performance on radiators
  • Newly designed fan blades and re-arranged angle for extraordinary air pressure

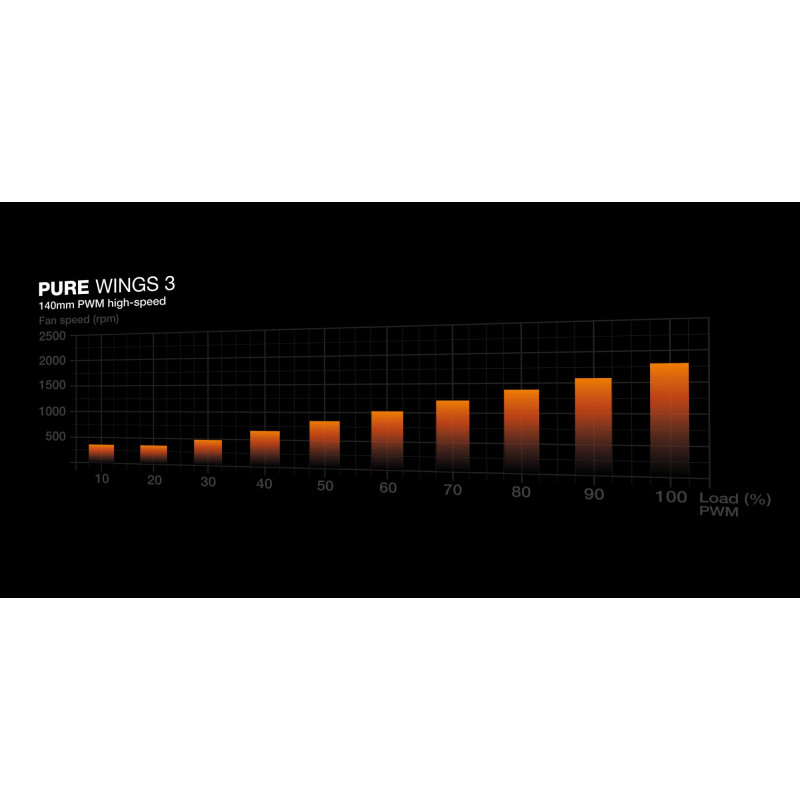

  • Pure Wings 3 140mm PWM high-speed can be operated with very low minimum rpm for very quiet operation
  • Long life rifle bearing gives an operating lifetime of 80,000 hours
  • Iconic, unmistakable and streamlined design that avoids anything unnecessary
  • Product conception, design and quality control in Germany

Produkto ypatybės

Garantija
36
Vendor Homepage
https://www.bequiet.com/en/download/casefans/4603?utm_source=newsletter
Category Code
COS
Unit Box Height
0.145
Unit Box Length
0.15
Unit Box Width
0.03
Product colour
Black
Shipping Box Depth
47.5 cm
Shipping Box Height
39 cm
Shipping Box Weight
17.85 kg
Shipping Box Width
35.5 cm
Model name
Pure Wings 3 140mm PWM high-speed
Unit Calculated Volume
0 cubm
0.0009134 cubm
Product Net Weight
0 kg
0.188 kg
Unit Calculated Weight
0 kg
0.248 kg
CnCode
84145925
Width
140 mm
Height
25 mm
Depth
140 mm
Colour
Black
Summary
be quiet! Pure Wings 3 140mm PWM high-speed. Type: Fan, Fan diameter: 14 cm, Rotational speed (max): 1800 RPM, Airflow: 122.6 m³/h, Maximum air pressure: 2.44 mmH2O. Voltage: 5 - 13.2 V. Width: 140 mm, Depth: 140 mm, Height: 25 mm. Product colour: Black
Model
BL109
Unit Brutto Volume
0.0009134 cubm
Shipping box quantity
72
Unit Net Weight
0.188 kg
Unit Gross Weight
0.248 kg
Full Description Line
Pure Wings 3 140mm PWM high-speed|Number of fans 1|Air flow 72.2 cfm|Noise level, max 30.5 dB|Colour Black|Dimensions 140 x 140 x 25 mm
Package depth
174 mm
Package height
27 mm
Package weight
221 g
Package width
142 mm
Units per Shipping Box
72

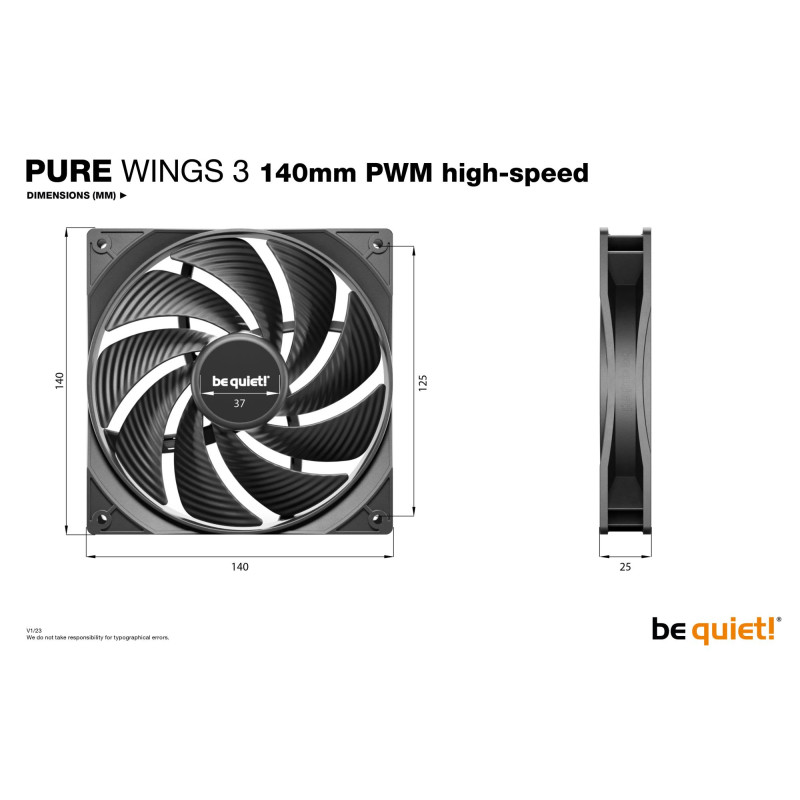

Dimensions
140 x 140 x 25 mm
Weight
188 g
Quantity per pack
1 pc(s)
Compliance certificates
CE/RoHS/UKCA/WEEE
Sustainability compliance
Yes
Products per shipping (inner) case
72 pc(s)
Shipping (inner) case height
370 mm
Shipping (inner) case length
482 mm
Shipping (inner) case width
395 mm
Type
Fan
Maximum airflow
72.2 cfm
Noise level, max
30.5 dB
31 dB
Sustainability certificates
Triman
Cable length
0.46 m
Kabelio ilgis
0.46 m
Tipas
Ventiliatorius
Voltage
5 - 13.2 V
Pakuotės gylis
174 mm
Pakuotės aukštis
27 mm
Pakuotės plotis
142 mm
Paketo svoris
221 g
Fan size group
140mm
Fan speed
1800
Mainboard connection
4-pin
Fan diameter
140 mm
Rotational speed (max)
1800 RPM
Suitable location
Computer case
Fan connector
4-pin
Fan current
0.12 A
Number of screws
4
Screws included
Yes
Number of fans
1
1 fan(s)
Rated voltage
12 V
Airflow
122.6 m³/h
Kiekis pakuotėje
1 vnt
Svoris
188 g
Produkto spalva
Juoda
Aukštis
25 mm
Ilgis
140 mm
Plotis
140 mm
Atitikties sertifikatai
CE/RoHS/UKCA/WEEE
Tvarumo sertifikatai
Triman
Tvarumo reikalavimų laikymasis
Taip
Pridėti sraigtai
Taip
Ventiliatoriaus skersmuo
140 mm
Sukimosi greitis (maks.)
1800 RPM
Triukšmo lygis (didelis greitis)
30.5 dB
Įtampa
5 - 13.2 V
Oro srautas
122.6 m³/h
Ventiliatorių skaičius
1 ventiliatorius(iai / ių)
Ventiliatoriaus jungtis
Keturių kontaktų
Didžiausias oro slėgis
2.44 mmH2O
Impulsų pločio moduliacijos (PWM) palaikymas
Taip
Varžtų skaičius
4
Nominalioji įtampa
12 V
Tinkama vieta
Kompiuterio korpusui
Ventiliatoriaus vidutinis laikas iki gedimo (MTTF)
80000 h
Didžiausias oro srautas
72.2 cfm
Ventiliatoriaus srovė
0.12 A
Ventiliatoriaus energijos suvartojimas
6 W
Ventiliatoriaus guolių technologija
Graižtinis guolis
Neto svoris
0.188 kg
Shipping (inner) case gross weight
17460 g
Air flow
72 cfm
72.2 cfm
Maximum air pressure
2.44 mmH2O
Noise level (high speed)
30.5 dB
Pulse-width modulation (PWM) support
Yes
Fan power consumption
6 W
Fan bearing technology
Rifle bearing
Transportavimo kartono dėžės aukštis
370 mm
Transportavimo kartono dėžės ilgis
482 mm
Transportavimo kartono dėžės plotis
395 mm
Gaminių skaičius gabenimo (vidinėje) dėžėje
72 vnt
Gabenimo (vidinės) dėžės bendrasis svoris
17460 g
Daugiafunkcinio įrankio tipas
36
Unit Width
3 cm
Unit Depth
15 cm
Unit Height
14.5 cm
Name
CASE FAN 140MM PURE WINGS 3/PWM HIGH-SPEED BL109 BE QUIET
Vieneto aukštis
14.5 cm
Vieneto gylis
15 cm
Vieneto plotis
3 cm
Vienetų skaičius vienoje siuntimo dėžėje
72
Bruto svoris
0.248 kg
Fan's mean time to failure (MTTF)
80000 h
