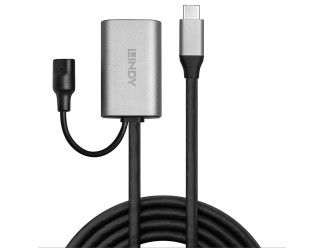

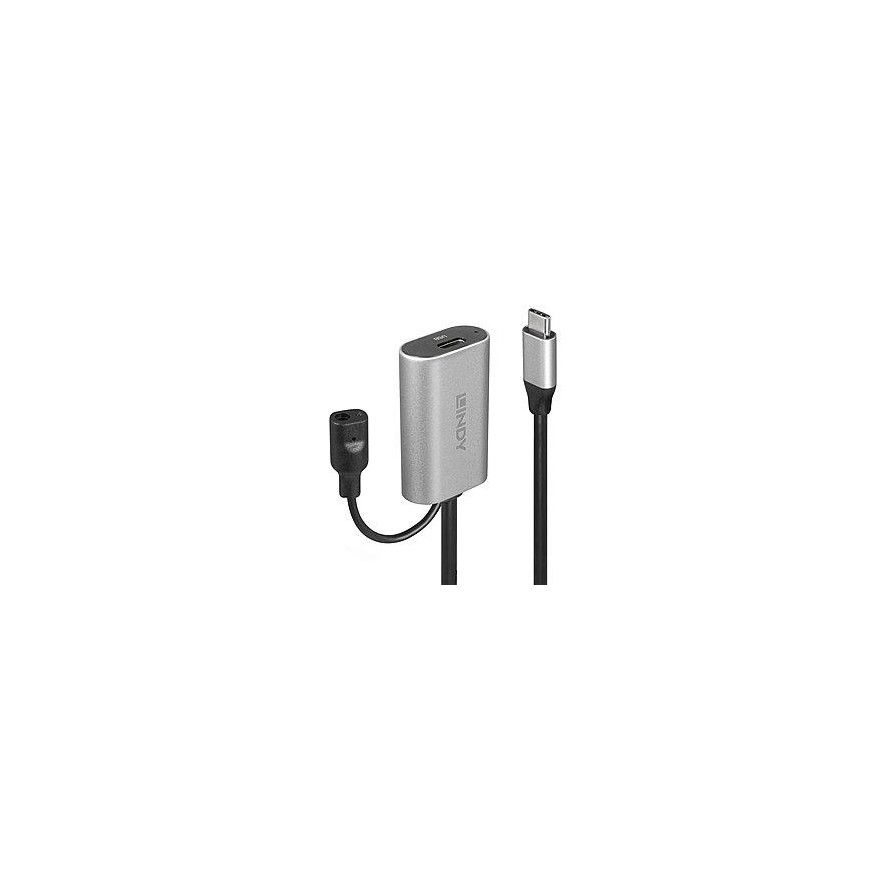

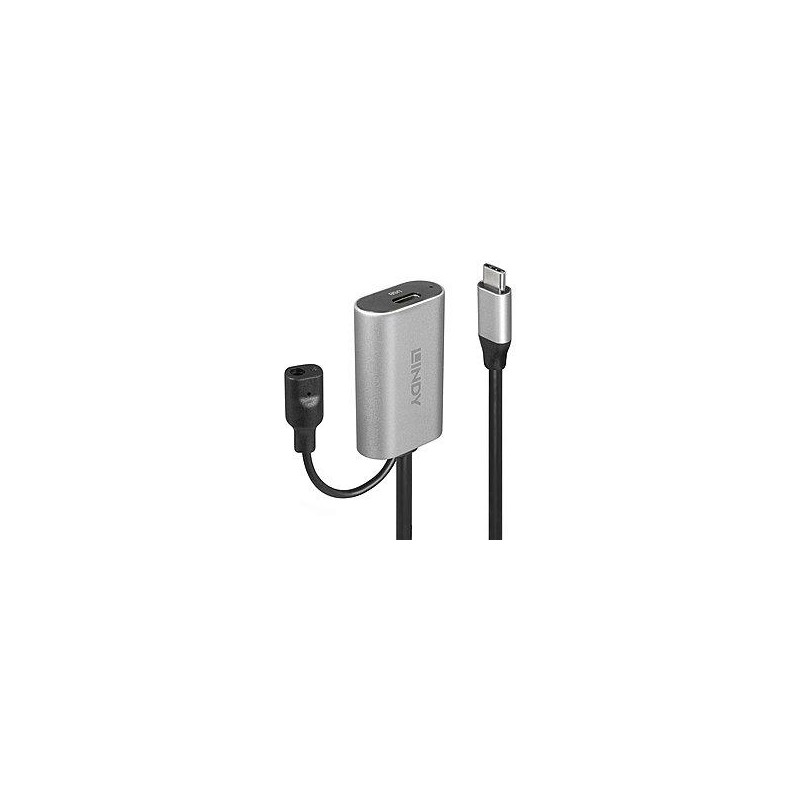

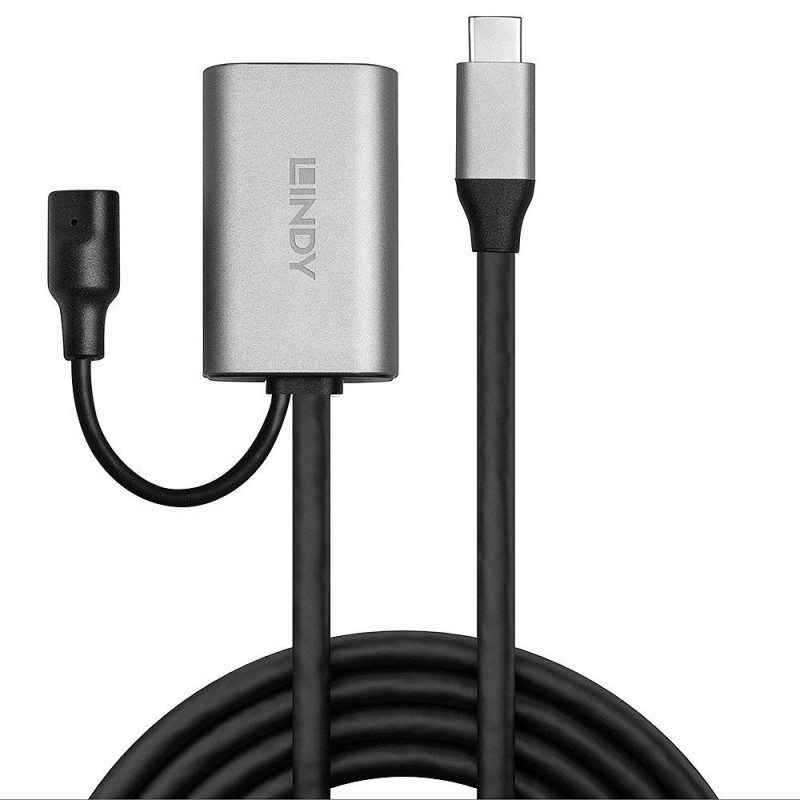

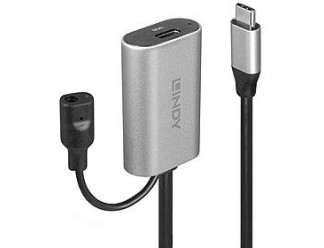

5m USB 3.1 Gen 1 C/C Active Extension
5m USB 3.1 Extension of a USB Type C port
- Connector A: USB Type C Male
- Connector B: USB Type C Female
- Power: 3.5/1.35mm DC Connector
- Housing Material: Aluminium
- Connector Plating: Nickel plated shell
- Pin Construction: Copper
- Pin Plating: Gold
- USB C Male: 11.65x36x6.5mm (0.46x1.42x0.26in)
- USB C Female (housing): 28.6x45x14.1mm (1.13x1.77x0.56in)
Cable Construction
- Length: 5m (16.4ft)
- Standard: USB 3.1 Gen 1 / 3.0
- Colour: Black
- Type: Round
- Jacket Diameter: 4.6mm (0.18in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 28AWG+28AWG+22AWG
- Shielding: 85% TC
Specifications
- Supported Bandwidth: 5Gbps
- Minimum Bend Radius: 36mm (1.42in)
- Operating Temperature: 0°C to 40°C (32°F - 104°F)
- Storage Temperature: -10°C to 60°C (14°F - 140°F)
- Transmission Medium: Twisted Pair
- Transmission Technology: USB 3.1 Gen 1 / 3.0
