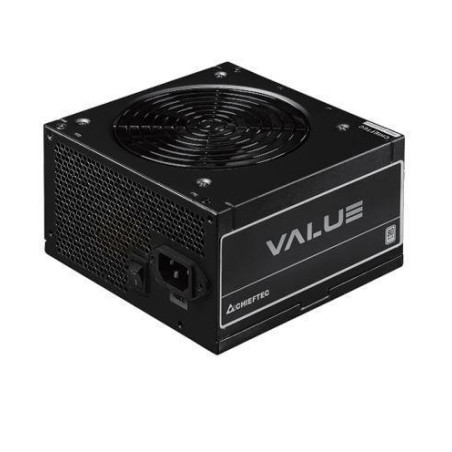

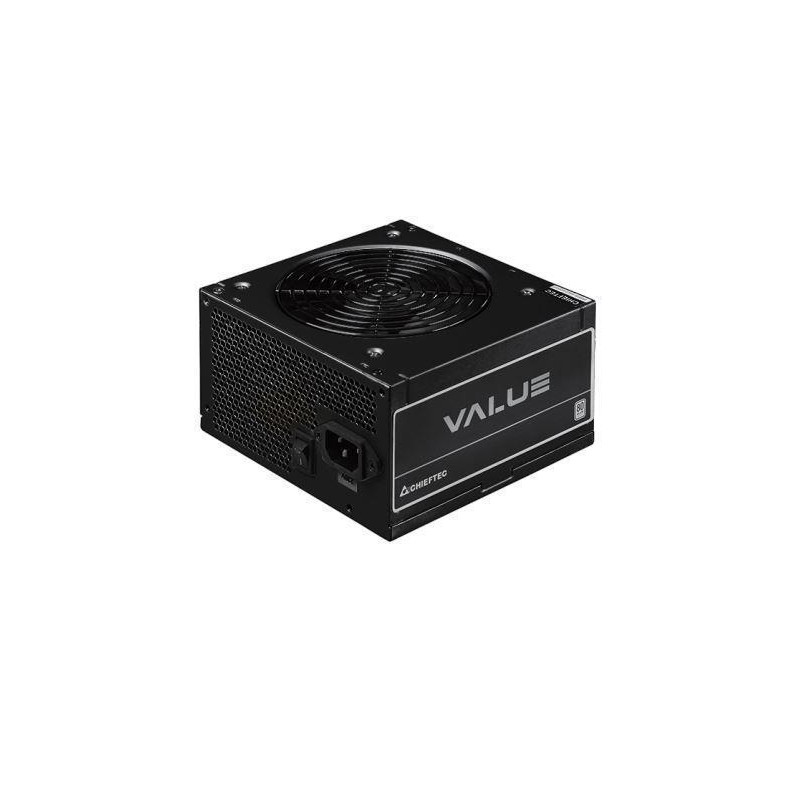

Power Supply|CHIEFTEC|APB-400B8|200 - 240 V|400 W|APB-400B8-BK

Power Supply|CHIEFTEC|APB-400B8|200 - 240 V|400 W|APB-400B8-BK

33,40 €
Pagrindinės savybės:
Produkto informacija FRT933310
Liko produktų 20+

Sblizingas.lt - naujasdizainas.com
  • Garantija (mėn.) 24
  • Prekių pristatymas Apie 4d.d.
  • Likutis 20+

Apie produktą

The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!

Produkto ypatybės

Garantija
24
Vendor Homepage
www.chieftec.eu/products-detail/181/VALUE_SERIES/249/APB-400B8
Category Code
PSU
Unit Box Height
0.16
Unit Box Length
0.22
Unit Box Width
0.1
Product colour
Black
AC input frequency
47 - 63 Hz
AC input voltage
200 - 240 V
Shipping Box Depth
22 cm
Shipping Box Height
16 cm
Shipping Box Weight
1.17 kg
Shipping Box Width
10 cm
Model name
APB-400B8
Unit Calculated Volume
0 cubm
0.00352 cubm
Product Net Weight
1 kg
1.17 kg
Unit Calculated Weight
1 kg
1.17 kg
CnCode
85044095
Width
140 mm
Height
87 mm
Depth
150 mm
Model
VALUE 400W
Unit Brutto Volume
0.00352 cubm
Shipping box quantity
1
Unit Net Weight
1.17 kg
Unit Gross Weight
1.17 kg
Full Description Line
APB-400B8|ATX 2.3|400 Watts|Cooling System 12cm fan|80 PLUS|PFC Active
Units per Shipping Box
1
Dimensions
140 mm x 150 mm x 87 mm
Weight
1170 g
Input current
200-240V / 3.0A A
PSU
ATX 2.3
Supported motherboard form factors
ATX
Cooling System
12cm fan
PSU Output Power
400 Watts
Efficiency
80 PLUS
PFC
Active
Fan diameter
120 mm
Max output current (+3.3V)
17 A
Max output current (+5V)
16 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Total power
400 W
80 PLUS certification
80 PLUS White
ATX version
2.3
Svoris
1170 g
Produkto spalva
Juoda
Aukštis
87 mm
Ilgis
150 mm
Plotis
140 mm
AC įėjimo dažnis
47 - 63 Hz
AC įėjimo įtampa
200 - 240 V
Įvesties srovė
200-240V / 3.0A A
Ventiliatoriaus skersmuo
120 mm
Neto svoris
1.17 kg
Power Factor Correction (PFC) type
Active
Combined power (+5Vsb)
12.5 W
Max output current (+12V1)
30 A
Motherboard power connector
20+4 pin ATX
Sertifikatas 80 PLUS
80 PLUS White
Palaikomos motininės plokštės formos faktorius
ATX
Bendroji galia
400 W
Galios koeficiento pataisos (PFC) tipas
Aktyvus
Didžiausia išėjimo įtampa (+12 VSB)
2.5 A
ATX versija
2.3
Didžiausia išėjimo įtampa (–12 V)
0.3 A
Didžiausia išėjimo įtampa (+3,3 V)
17 A
Didžiausia išėjimo įtampa (+5 V)
16 A
Motininės plokštės maitinimo jungtis
20+4 pin ATX
Kompleksinė galia (+5 VSB)
12.5 W
Didžiausia išėjimo įtampa (+12 V1)
30 A
Daugiafunkcinio įrankio tipas
24
Unit Width
10 cm
Unit Depth
22 cm
Unit Height
16 cm
Name
CASE PSU ATX 400W/BULK APB-400B8-BK CHIEFTEC
Vieneto aukštis
16 cm
Vieneto gylis
22 cm
Vieneto plotis
10 cm
Vienetų skaičius vienoje siuntimo dėžėje
1
Bruto svoris
1.17 kg
