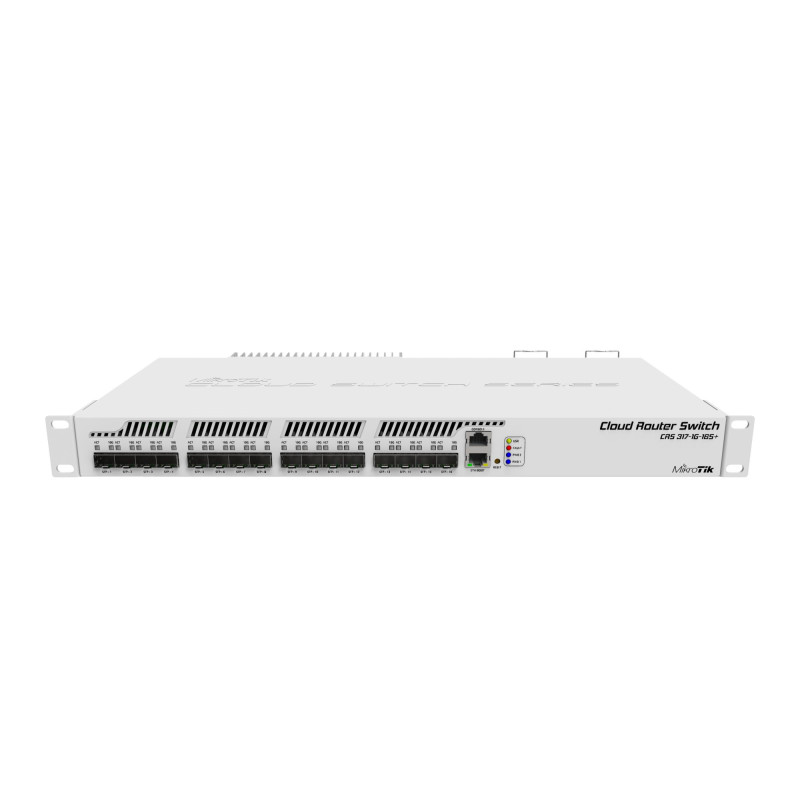

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

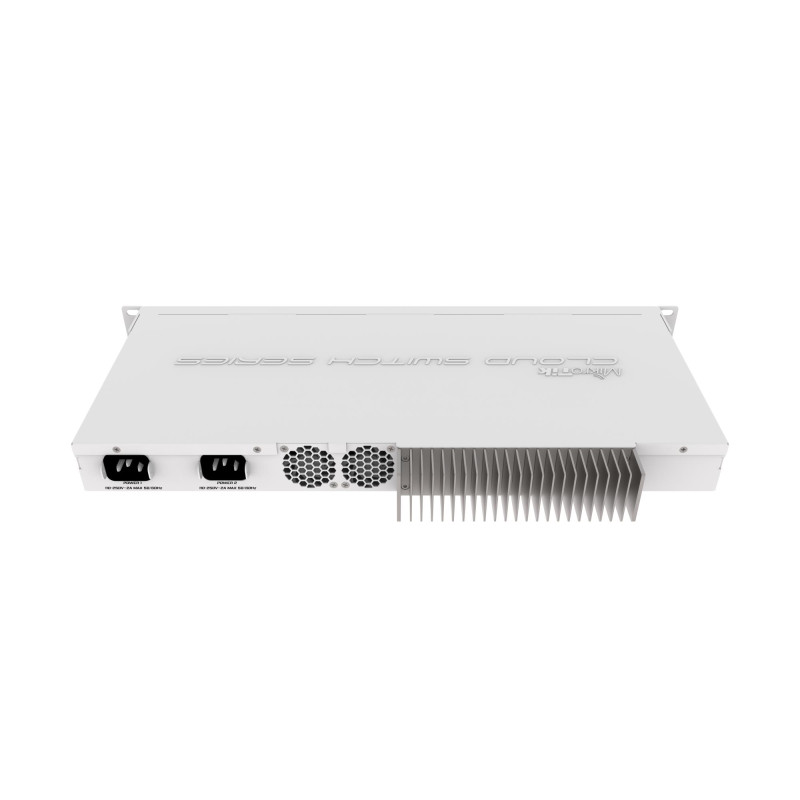

The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.
Switch|MIKROTIK|Type L3|CRS317-1G-16S+RM
Switch|MIKROTIK|Type L3|CRS317-1G-16S+RM
429,91 €
Pagrindinės savybės:
| Produkto informacija | FRT942365 |
| Liko produktų | 1 |
- Garantija (mėn.)
- Prekių pristatymas Apie 4d.d.
- Likutis 1
Apie produktą
Produkto ypatybės
Garantija
12
Vendor Homepage
https://mikrotik.com/product/crs317_1g_16s_rm
mikrotik.com/product/crs317_1g_16s_rm
mikrotik.com/product/crs317_1g_16s_rm
Category Code
SWI
Unit Box Height
0.06
Unit Box Length
0.48
Unit Box Width
0.29
Product colour
Grey
AC input voltage
110 - 240 V
Operating temperature (T-T)
-20 - 60 °C
Shipping Box Depth
48 cm
Shipping Box Height
29.5 cm
Shipping Box Weight
2.43 kg
Shipping Box Width
6 cm
Unit Calculated Volume
0 cubm
0.008496 cubm
0.008496 cubm
Product Net Weight
1 kg
1.4 kg
1.4 kg
Unit Calculated Weight
2 kg
2.43 kg
2.43 kg
CnCode
85176200
Width
443 mm
Height
44 mm
Depth
224 mm
Summary
Mikrotik CRS317-1G-16S+RM. Switch type: Managed, Switch layer: L3. Console port: RJ-45. Networking standards: IEEE 802.1Q. Power connector: DC-in jack. Rack mounting, Form factor: 1U
RJ45
1
Unit Brutto Volume
0.008496 cubm
Shipping box quantity
1
Unit Net Weight
1.4 kg
Unit Gross Weight
2.43 kg
Full Description Line
Type L3|Rack|1x10Base-T / 100Base-TX / 1000Base-T|16xSFP+|1xRJ45|Dimensions 443 x 224 x 44 mm|Unit Net Weight 1.4 kg
Power consumption (max)
42 W
Internal memory
16 MB

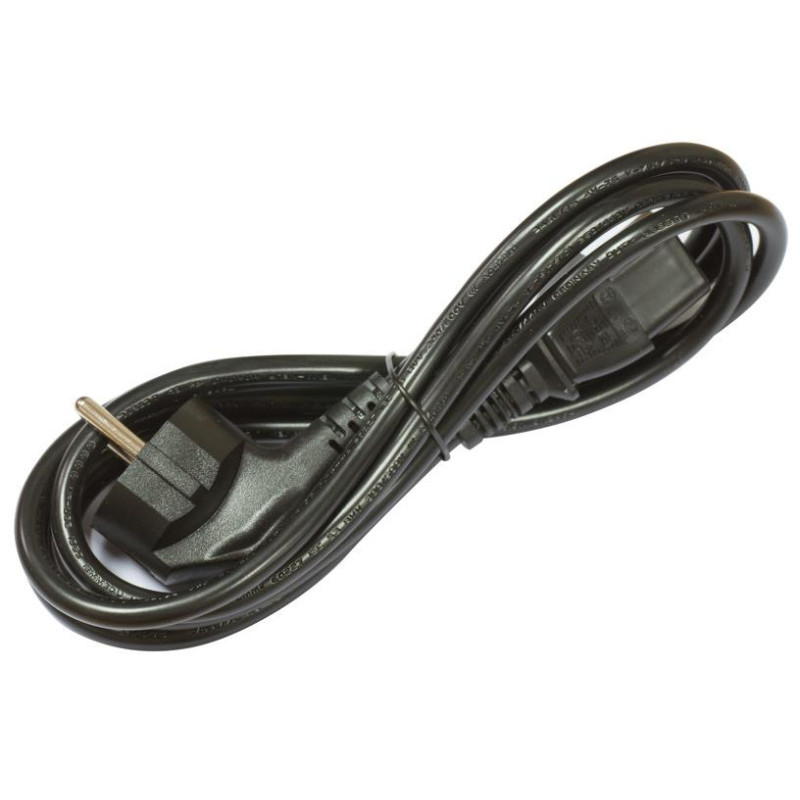

Cables included
AC
Units per Shipping Box
1
Form Factor
1U
Dimensions
443 x 224 x 44 mm
Memory type
Flash
Harmonized System (HS) code
85176990
Security algorithms
SNMPv2/SNMPv3
User guide
Yes
LED indicators
Yes
Processor frequency
800 MHz
Networking standards
IEEE 802.1Q
Flash memory
1000 MB
Number of fans
2 fan(s)
Rack
Yes
Power over Ethernet (PoE)
No
Switch type
L3
Managed
Managed
10Base-T / 100Base-TX / 1000Base-T
1
Switch layer
L3
Rack mounting
Yes
Built-in processor
Yes
Number of power supply units
2
VLAN support
Yes

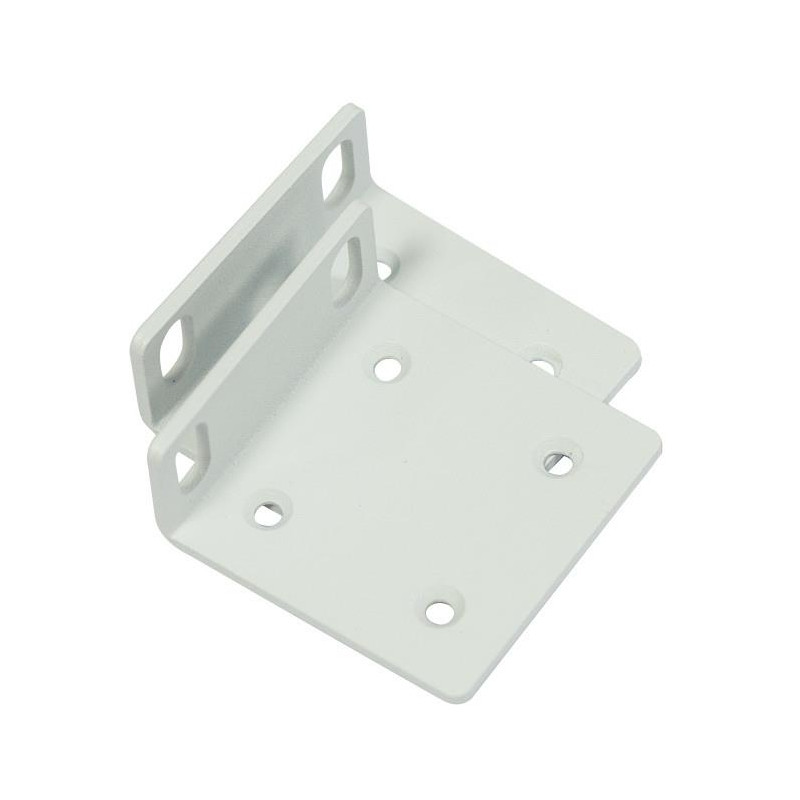

Mounting brackets included
Yes
SFP+
16
Basic switching RJ-45 Ethernet ports type
No
10G support
Yes
Web-based management
Yes
Reset button
Yes
Console port
RJ-45
SFP+ module slots quantity
16
Gigabit Ethernet (copper) ports quantity
1
Power connector
DC-in jack
Broadcast storm control
Yes
Number of VLANs
4000
Port mirroring
Yes
Spanning tree protocol
Yes
Link aggregation
Yes
