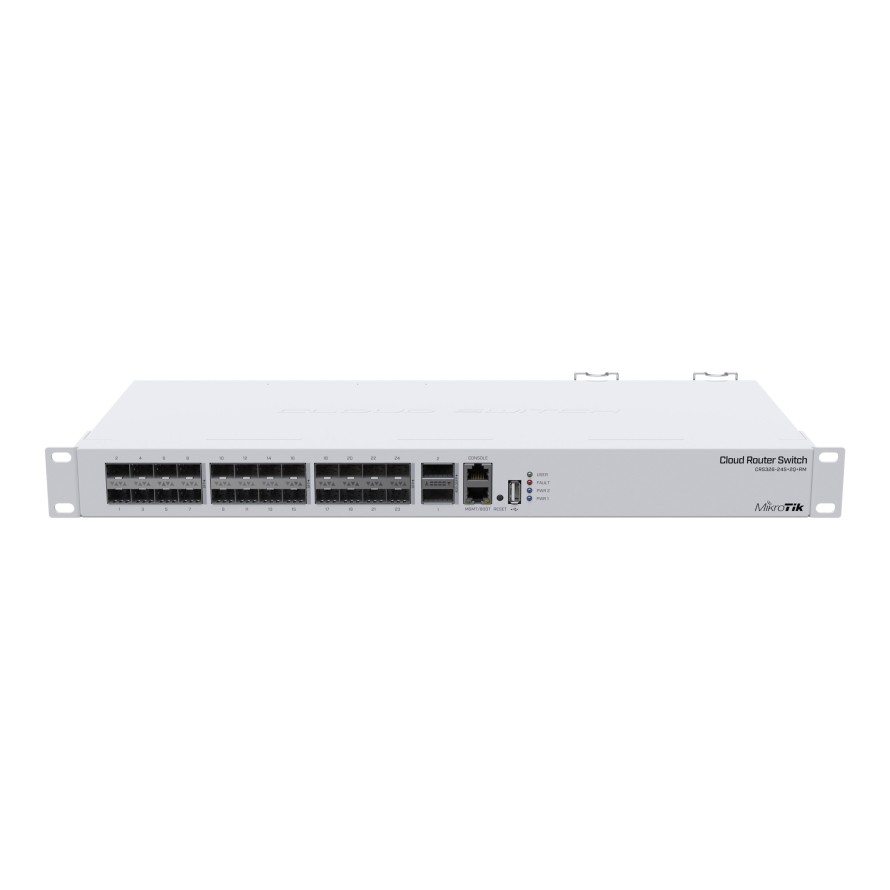

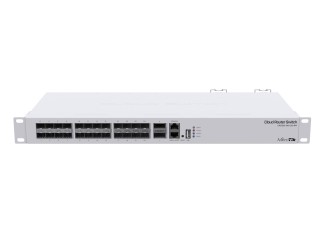

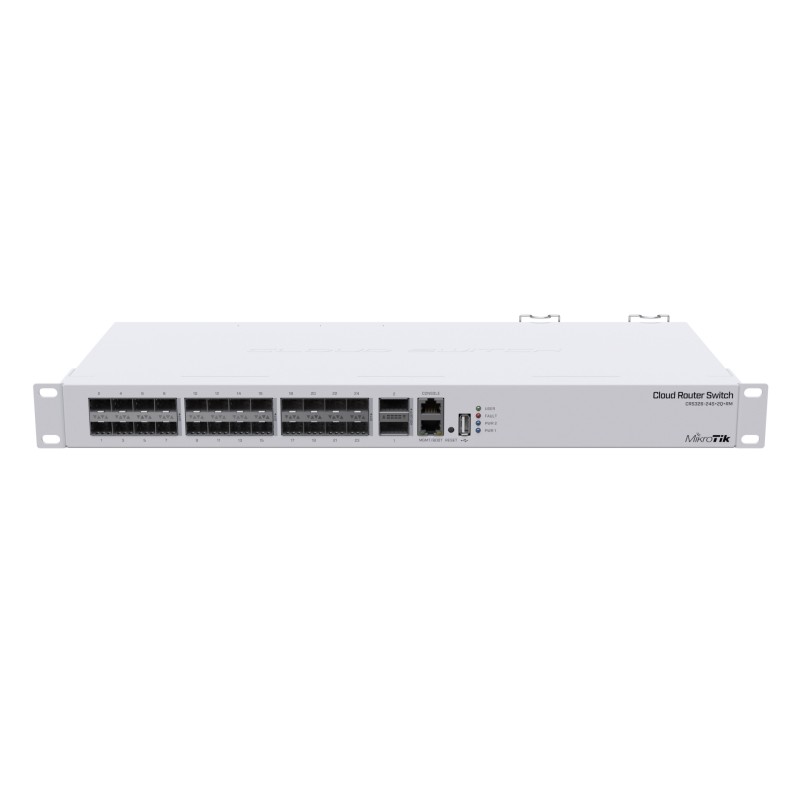

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

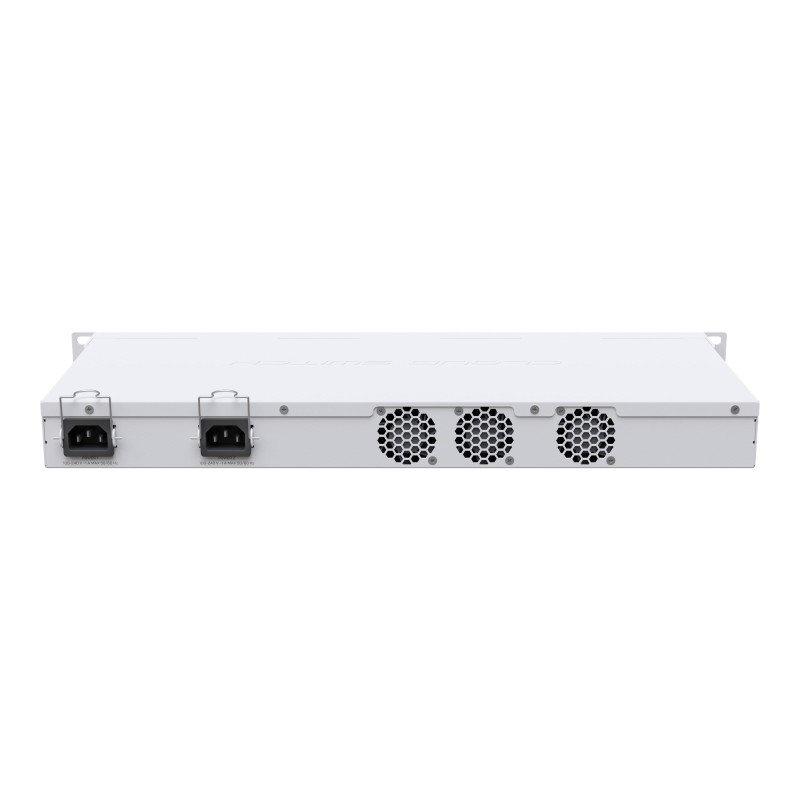

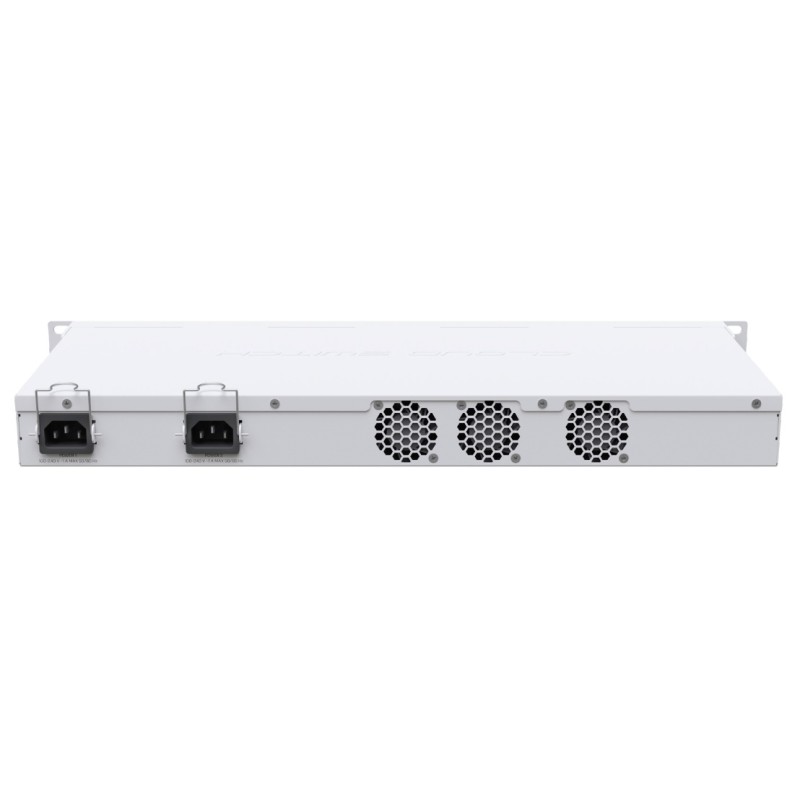

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
Switch|MIKROTIK|Rack|1x10Base-T / 100Base-TX|24xSFP+|2xQSFP+|1xRJ45|CRS326-24S+2Q+RM
Switch|MIKROTIK|Rack|1x10Base-T / 100Base-TX|24xSFP+|2xQSFP+|1xRJ45|CRS326-24S+2Q+RM
511,24 €
Pagrindinės savybės:
| Produkto informacija | FRT942852 |
| Liko produktų | 4 |
- Garantija (mėn.) 12
- Prekių pristatymas Apie 4d.d.
- Likutis 4
Apie produktą
Produkto ypatybės
Garantija
12
Vendor Homepage
https://mikrotik.com/product/crs326_24s_2q_rm#fndtn-specifications
mikrotik.com/product/crs326_24s_2q_rm
mikrotik.com/product/crs326_24s_2q_rm
Category Code
SWI
Unit Box Height
0.065
Unit Box Length
0.49
Unit Box Width
0.275
USB 2.0 ports quantity
1
Product colour
White
AC input voltage
100 - 240 V
Operating temperature (T-T)
-20 - 60 °C
Unit Calculated Volume
0 cubm
0.003773 cubm
0.003773 cubm
Product Net Weight
2 kg
Unit Calculated Weight
2.75 kg
3 kg
3 kg
CnCode
85176200
Width
443 mm
Height
44 mm
Depth
183 mm
Summary
Mikrotik CRS326-24S+2Q+RM. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 1, Console port: RJ-45. Switching capacity: 640 Gbit/s. Power connector: AC-in jack. Rack mounting, Form factor: 1U
RJ45
1
Power consumption (max)
69 W
Internal memory
64 MB
Cables included
AC
Units per Shipping Box
10
Form Factor
1U
Dimensions
443 x 183 x 44 mm
Memory type
RAM
Harmonized System (HS) code
85176990
LED indicators
Yes
Processor frequency
650 MHz
Flash memory
16 MB
Rack
Yes
Power over Ethernet (PoE)
No
Primary port count
24
Switching capacity
640 Gbit/s
Forwarding rate
252 Mpps
Switch type
Managed
10Base-T / 100Base-TX
1
Switch layer
L3
Rack mounting
Yes
Built-in processor
Yes
Daugiafunkcinio įrankio tipas
12
SFP+
24
10G support
Yes
Reset button
Yes
Console port
RJ-45
SFP+ module slots quantity
24
QSFP+
2
Power connector
AC-in jack
Throughput
320 Mpps
Rack mount kit
Yes
QSFP+ module slots quantity
2
Redundant power supply (RPS) support
Yes
