Teltonika Combo LTE/ GPS/ Wi-Fi antenna

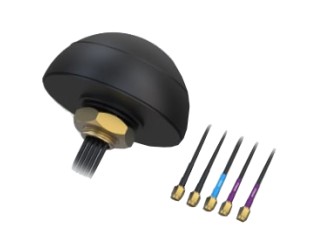

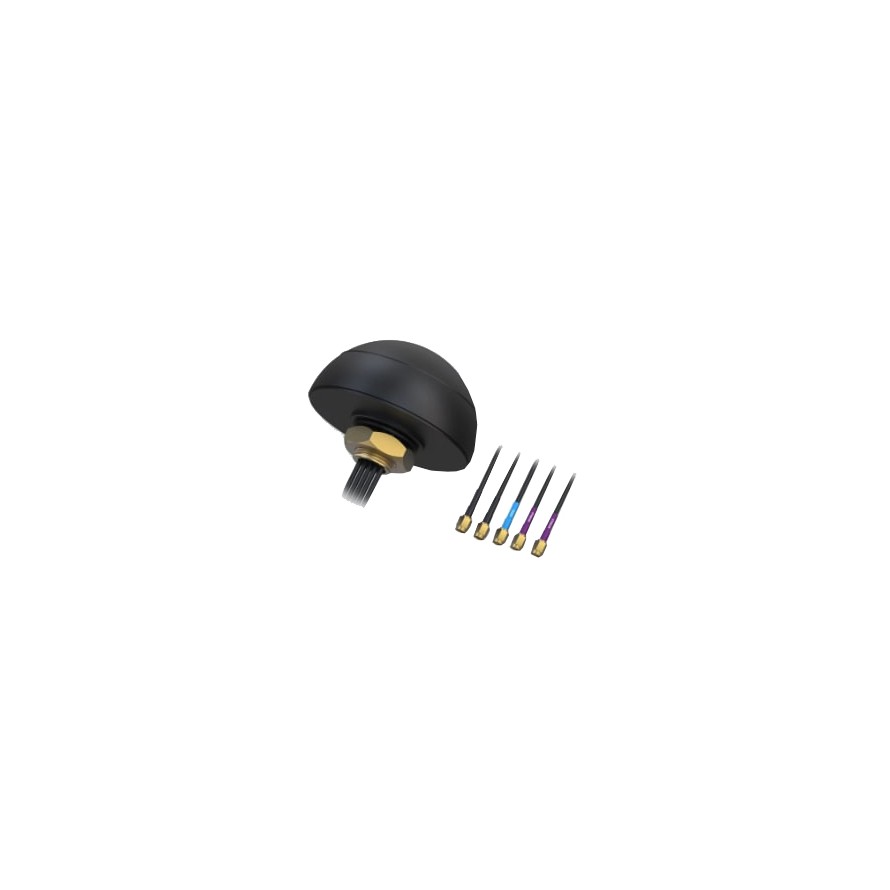

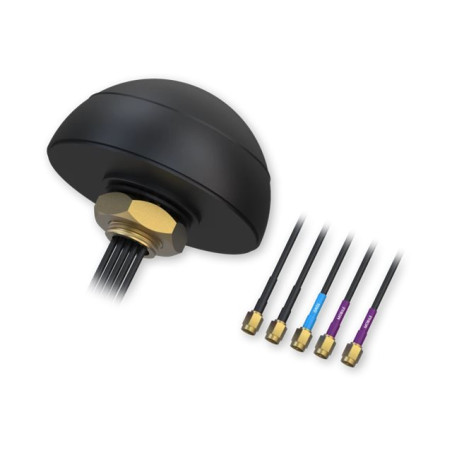

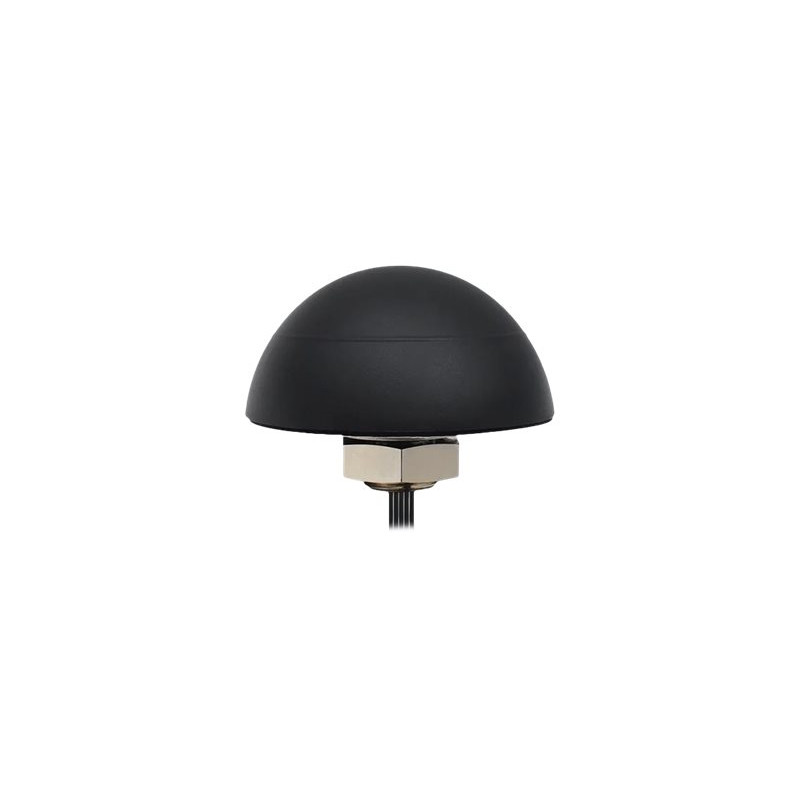

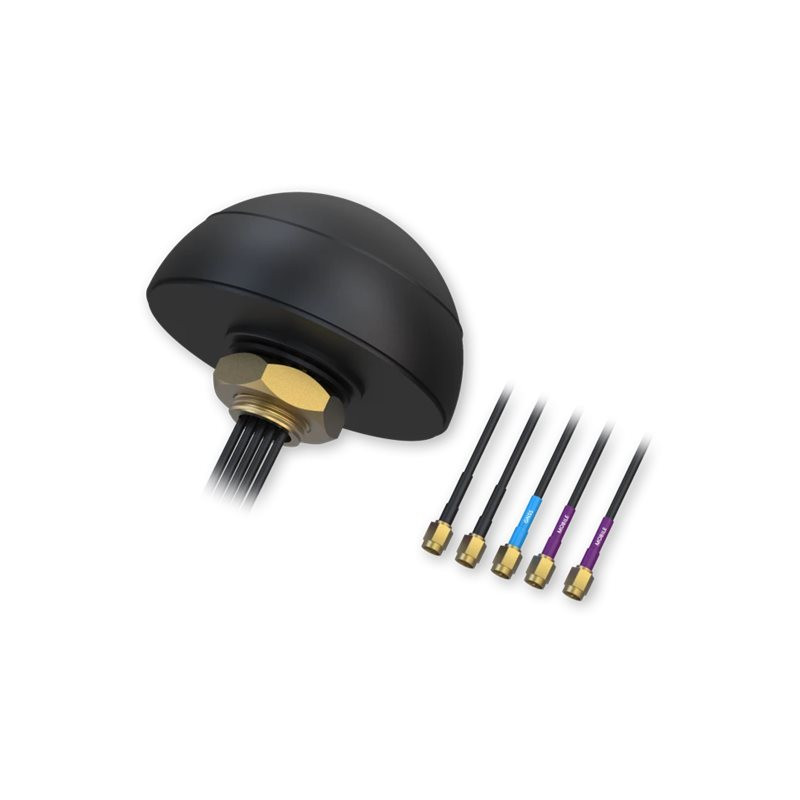

The MIMO Combo antenna consists of 5 integrated antennas: 2 LTE antennas, 2 Wi-Fi antennas and a GPS antenna. It is designed to be mounted on vehicle roofs.
- Frequency range 1575.42-1610 MHz
- Polarisation RHCP
- Impedance 50 Ω
- LNA reinforcement 28±2 dB
- LNA Noise Figure < 1.5 dB
- Supply voltage 3-5 V DC
- Power consumption < 15 mA
- LNA V.S.W.R. < 2.0
- Connector Male SMA
