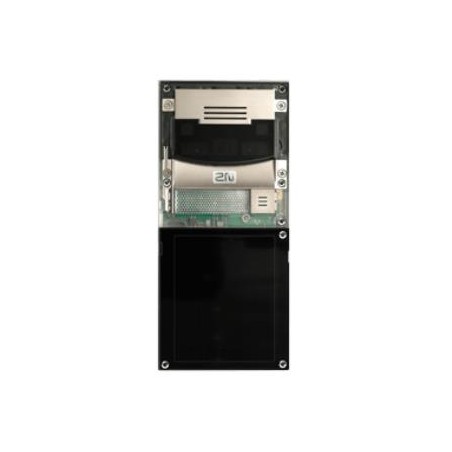

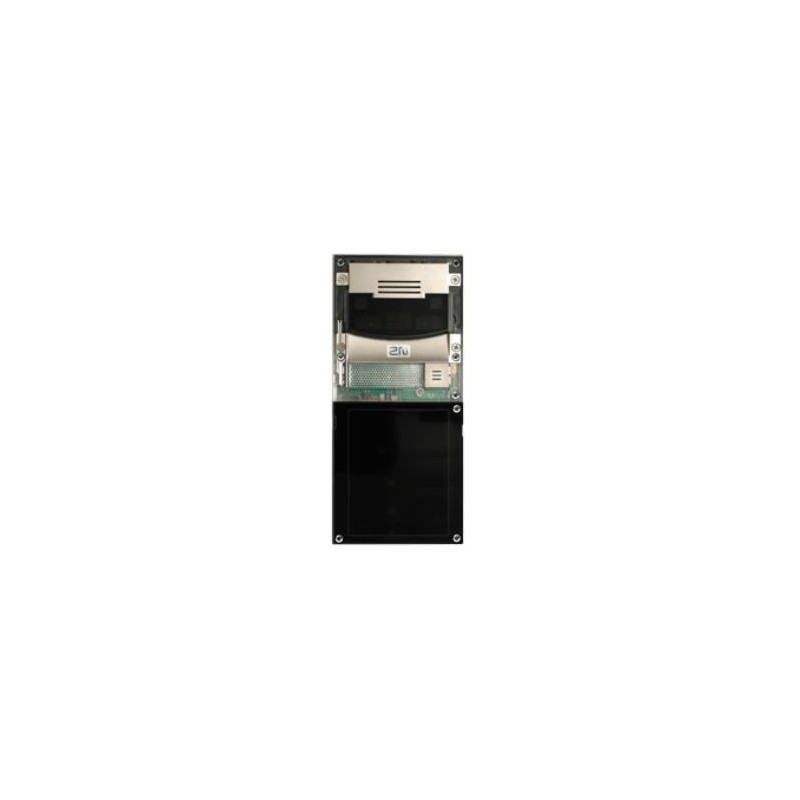

Відеодомофон 2N IP VERSO W/CAMERA (9155101C)
The 2N® IP Verso security intercom is configurable to your needs thanks to its modularity. It provides reliable access control and allows you to easily interface with other systems, achieving even higher site security. Now also available with a Bluetooth module or touchscreen.
There must be just one (with/without a camera) main unit in every installation. The main unit installation requires two frame/box positions; the other position, however, is left for additional module installation.
Signalling protocol SIP 2.0 (RFC - 3261)
Audio Microphone 1 built-in microphone
Speaker 2W
Audio codecs G.711, G.729, G.722, L16/16kHz
Camera resolution 1280 x 960 (JPEG), 640 x 480 (video call)
Viewing angle 120° (H), 90° (V), 145° (D)
Night vision Yes
Video codecs H.263+, H.263, H.264, MJPEG, MPEG-4
RFID card reader supported frequencies: 13.56MHz & 125 kHz
Support for NFC Yes
Power supply 12V ± 15%/ 2A DC, or PoE
PoE PoE 802.3af (Class 0 - 12.95W)
LAN 10/100BASE-TX with Auto-MDIX, RJ-45
Switch output NC/NO contacts, max 30 V/1 A AC/DC
Active switch output 8 to 12 V DC depending on Power supply (PoE: 10 V; adapter: source voltage minus 2 V), max 400mA
Supported protocols SIP2.0, DHCP opt. 66, ONVIF, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog
Operating temperature -40°C – 60°C
Operating relative humidity 10%-95% (non-condensing)
Officially certified outdoor coverage level IP54, IK08
